Description
Description

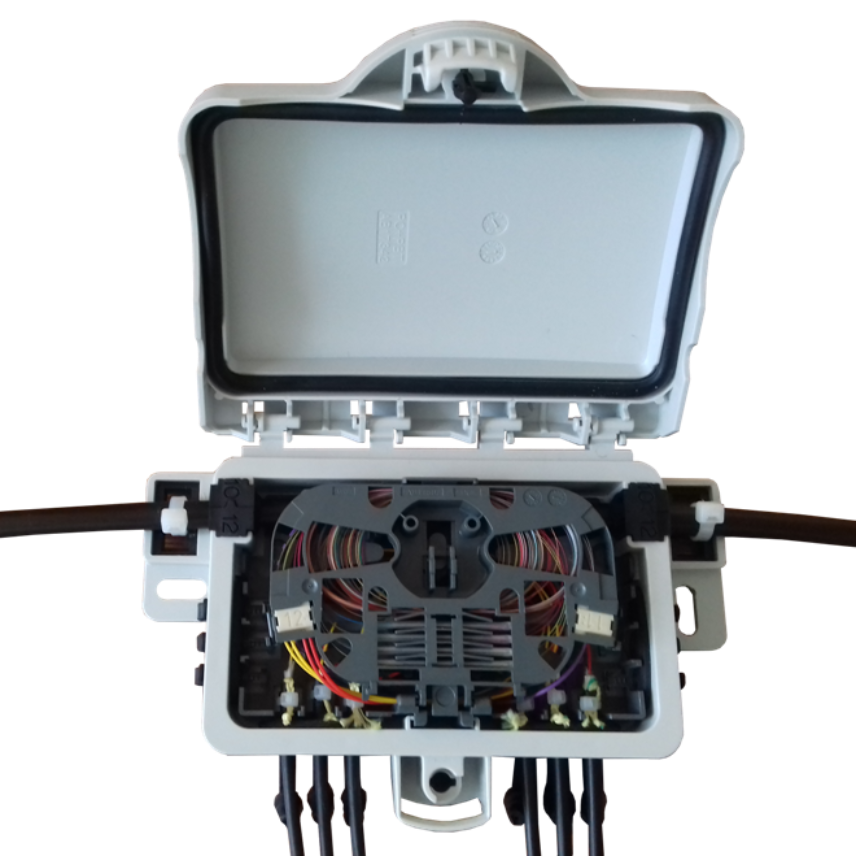

This cable is suitable for facade applications in combination with our Walldrop façade distribution box.
It contains 24 units from 1 to 4 fibres individually retractable for an in-line easy cabling.
Soft UV resistant outersheath allows easy mid-span access to the units.
Caracteristics
- UV resistant LSZH outersheath
- Radial Strength Members (Fibre Reinforced Plastic)
- Fully dielectric
- Watertight
- Extractible Units (250μm fibre)
- Easy strippable fibre unit (30cm in one step)
Marking
Nexans - SP1859 - FIBRE OPTIC CABLE - XG65X - FB - N°of - metric

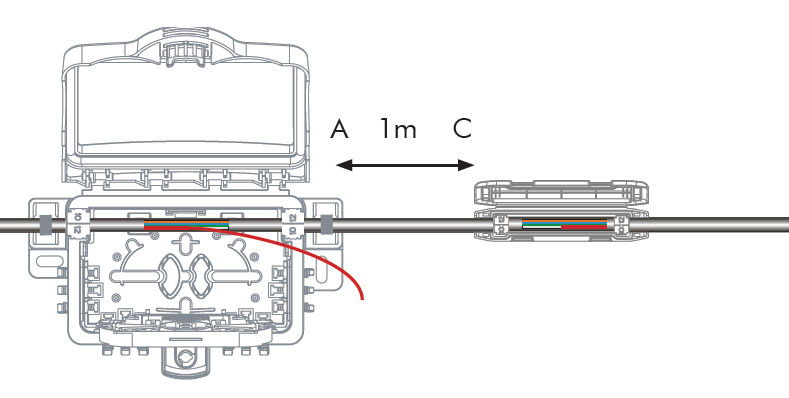

In-line usage - pullback solution
All details are available in the Walldrop Distribution Box installation manual.

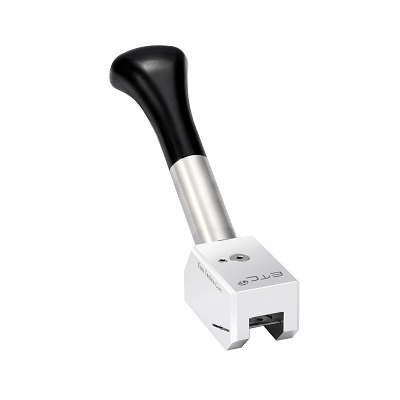

Tooling for window cut opening ETC MFO13202 http://www.eurotechnocom.fr/outillage/5089-outil-d-ouverture-etc-pour-cable-riser.html
ETC MFO13202
Presentation and user manual (video)
http://www.eurotechnocom.fr/outillage/5089-outil-d-ouverture-etc-pour-cable-riser.html
Characteristics
Characteristics

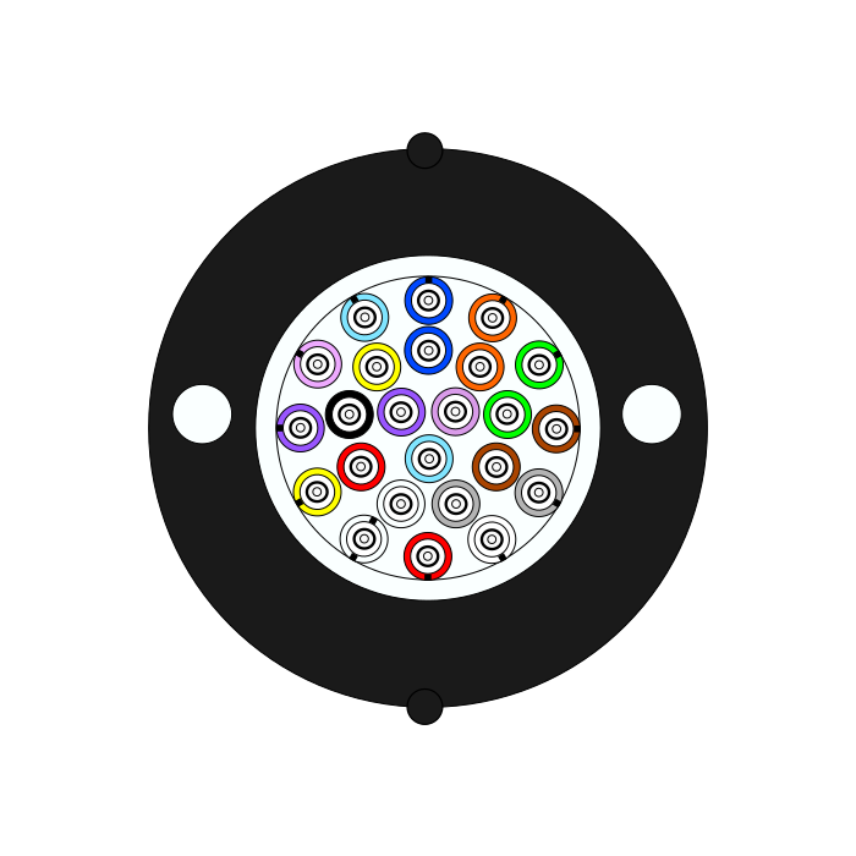

Construction characteristics
Construction characteristics
Armour type
FRP
Construction type
Multi Tight
Fiber optic type
SM (G.652D)
Metal free
Yes
Outer sheath
LSZH
Dimensional characteristics
Dimensional characteristics
Nominal outer diameter
11.4 mm
Number of optical fibres
24
Number of tubes
24
Approximate weight
123 kg/km
Mechanical characteristics
Mechanical characteristics
Crush resistance (IEC 60794-1-E3)
50 N/cm
Mechanical resistance to impacts (IEC 60794-1-E4)
3 impacts of 5 N.m
Maximum tensile load during service (Tl)
20.0 daN
Maximum admissible traction load (Tm)
50 daN
Usage characteristics
Usage characteristics
Installation type
Outdoor
Bending factor when laying
20 (xD)
Ambient installation temperature, range
0 ... 40 °C
Operating temperature, range
-40 ... 70 °C
Storage temperature, range
-40 ... 70 °C
