Riser - Microbundle cables Cca
Riser - Microbundle cables Cca

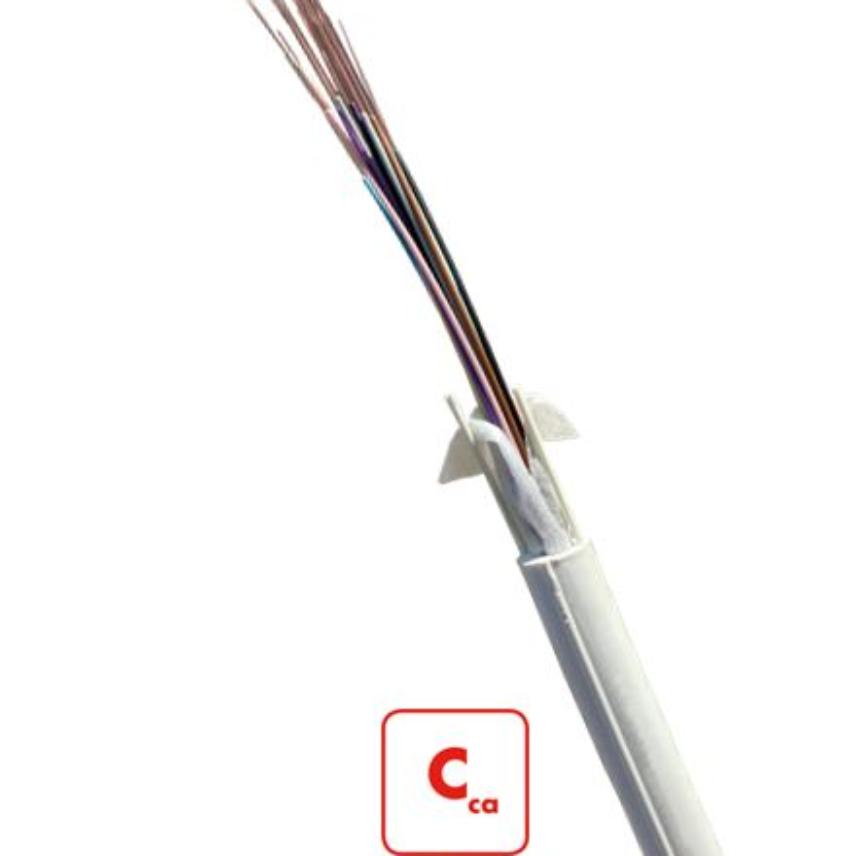

Multi Micro-bundles cable - up to 144 fibres
Read moreDescription
Description
Standards
-
InternationalEN 50399; IEC 60332-1; IEC 60332-3; IEC 60754-1; IEC 60794; IEC 61034
These multi micro-bundles cables are designed for indoor installation and offer easy extraction of the units as a riser cable
These cables have an outstanding fire behaviour.
These cable can be operated under a large temperature range.
Design
The cables have a radial strengthmember design and contains up to 24 units with a maximum of 144 fibres. They are available in modularity 2, 4, 6 and 12.
The pullback can be operated on 6m.
Fibre type
These cables are available with singlemode and multimode fibres.
Technical performances
The multibundle cable performances are specified in the following tables.
Additional details
This cable is provided as a standard with a black sheath, other sheath colours are also available. Long exposure to UV with other colours could generate colour fading.
Euroclass
Cca s1 d0 a1
* LSZH: Low Smoke Zero Halogen.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Dimensional characteristics
Dimensional characteristics
Mechanical characteristics
Mechanical characteristics
Usage characteristics
Usage characteristics
Resources
Resources
Selling & delivery Information
Standard Marking
Nexans - FIBRE OPTIC CABLE - MB-C LSZH Cca s1 d0 a1 SPXXXX - XXxYY - FB - TN - metric
XX = Fibre Count
YY = Fibre Type
FB = Frameries, Belgium (manufacturing place)
TN = Traceability Number
