IEC 60502-2 HYPRON® Armé (SWA) Non propagateur de l'incendie

Applications

These power cables are used for electricity supply in medium voltage installation system. They are well adapted to underground use in industrial applications, in moist areas, where hydrocarbons and mechanical protections are needed. Hypron® offers an alternative to conventional lead covered cable and is an environmental friendly solution.

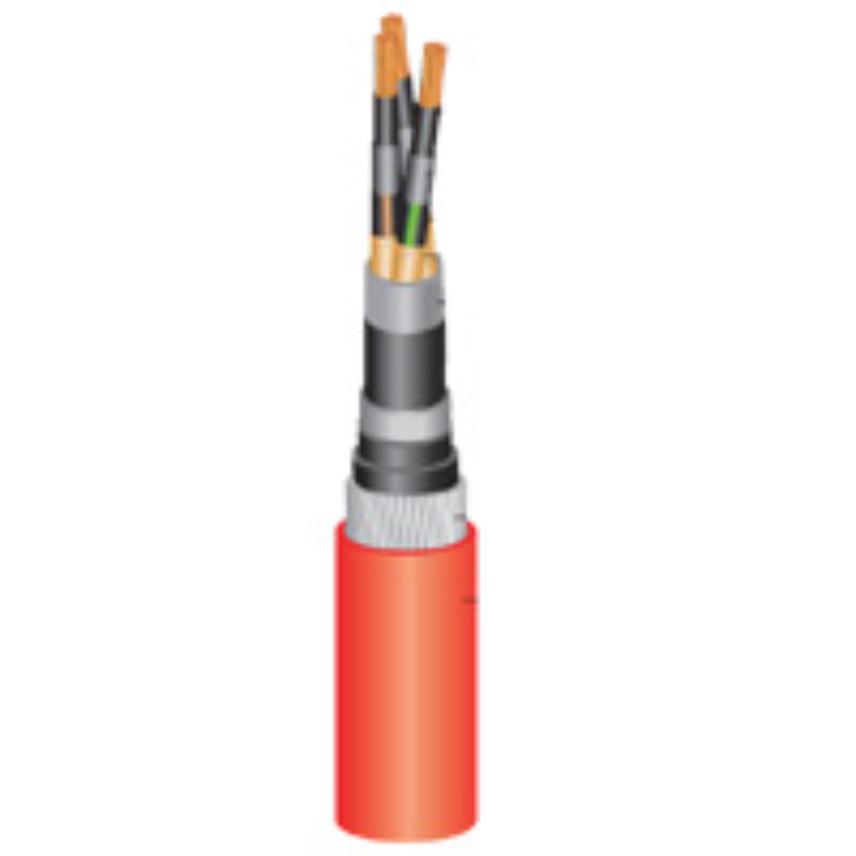

Design

Conductor:

Stranded bare copper (class 2)

Semi-conductor

Insulation:

Cross-linked polyethylene (XLPE)

Semi-conductor

Screen:

Copper tape

Bedding (Optional):

An inner sheath acting as a filler with practically zero thickness

Inner sheath:

Polyvinyl chloride (PVC)

Screen/sealing barrier:

 Aluminium/polyethylene tape

Sheath:

High density polyethylene (PE) Colour: black

Special sheath (intermediate sheath):

Polyamide

Armour:

Galvanized steel wires (SWA) or aluminium wires (AWA) for 1 core cable

Outer sheath:

Polyvinyl chloride (PVC). Colour: red. Other colour on request.

Core identification

1 core: natural
3 x: black – green – brown (by tape under copper screen)


Marking

NEXANS 279 XLPE/PVC/AL/HDPE/NC/SWA or AWA/PVC VOLTAGE Nber of cores and cross section Cu/Alu IEC 60332-3-22(A) MM YYYY manufacturing number + meter marking

Standards

IEC 60502-2 (design guide-lines)
