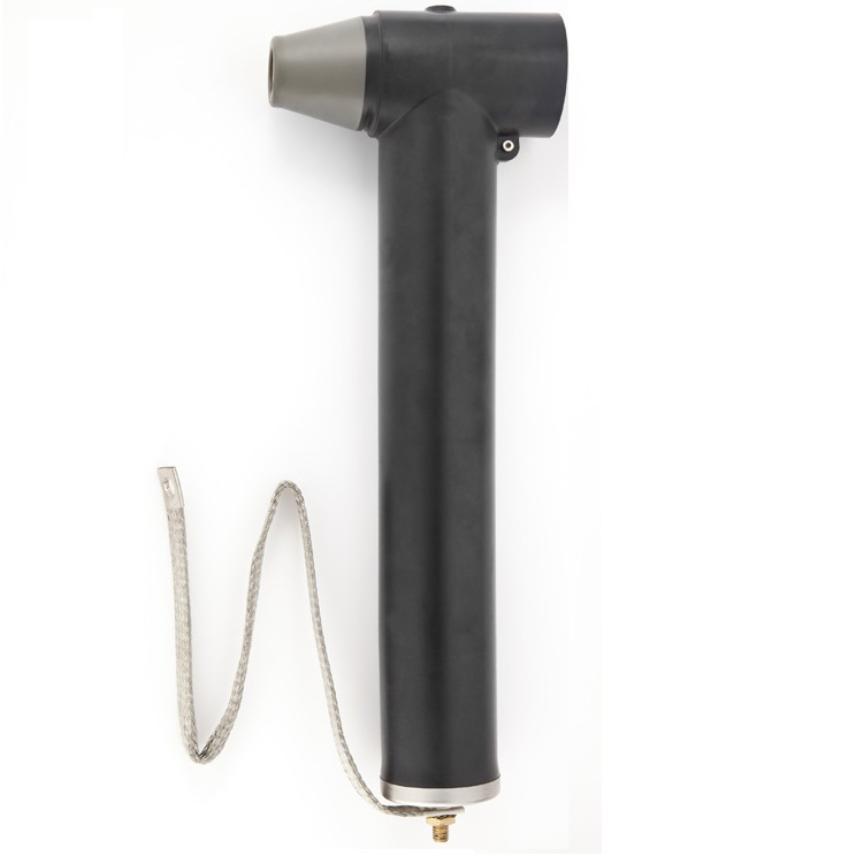

MV Surge Arresters 800SA
MV Surge Arresters 800SA
Surge arresters for 480TB, 484TB, 489TB, 800PB, 804PB and 809PB connector. Up to 42 kV.
Lire plus800SA-10-12N
Réf. Nexans
- Lightning current residual voltage [8/20 µs] @ 10 kA: 33,6 kV
- Lightning current residual voltage [8/20 µs] @ 20 kA: 37,1 kV
- Lightning current residual voltage [8/20 µs] @ 5 kA: 31,5 kV
- Steep current residual voltage @ 10 kA [1/20 µs]: 36,3 kV
- Switching impulse residual voltage [36/90 µs] @ 125 A: 25,1 kV
- Switching impulse residual voltage [36/90 µs] @ 500 A: 26,5 kV
- Tension de service maximale Uc: 9,6 kV
- Tension nominale Ur: 12 kV
800SA-10-15N
Réf. Nexans
- Lightning current residual voltage [8/20 µs] @ 10 kA: 42 kV
- Lightning current residual voltage [8/20 µs] @ 20 kA: 46,4 kV
- Lightning current residual voltage [8/20 µs] @ 5 kA: 39,4 kV
- Steep current residual voltage @ 10 kA [1/20 µs]: 45,3 kV
- Switching impulse residual voltage [36/90 µs] @ 125 A: 31,4 kV
- Switching impulse residual voltage [36/90 µs] @ 500 A: 33,1 kV
- Tension de service maximale Uc: 12 kV
- Tension nominale Ur: 15 kV
800SA-10-18N
Réf. Nexans
- Lightning current residual voltage [8/20 µs] @ 10 kA: 50,4 kV
- Lightning current residual voltage [8/20 µs] @ 20 kA: 56,4 kV
- Lightning current residual voltage [8/20 µs] @ 5 kA: 47,3 kV
- Steep current residual voltage @ 10 kA [1/20 µs]: 54,4 kV
- Switching impulse residual voltage [36/90 µs] @ 125 A: 37,7 kV
- Switching impulse residual voltage [36/90 µs] @ 500 A: 39,7 kV
- Tension de service maximale Uc: 14,4 kV
- Tension nominale Ur: 18 kV
800SA-10-22N
Réf. Nexans
- Lightning current residual voltage [8/20 µs] @ 10 kA: 61,6 kV
- Lightning current residual voltage [8/20 µs] @ 20 kA: 68,1 kV
- Lightning current residual voltage [8/20 µs] @ 5 kA: 57,8 kV
- Steep current residual voltage @ 10 kA [1/20 µs]: 66,5 kV
- Switching impulse residual voltage [36/90 µs] @ 125 A: 46 kV
- Switching impulse residual voltage [36/90 µs] @ 500 A: 48,5 kV
- Tension de service maximale Uc: 17,6 kV
- Tension nominale Ur: 22 kV
800SA-10-24N
Réf. Nexans
- Lightning current residual voltage [8/20 µs] @ 10 kA: 67,2 kV
- Lightning current residual voltage [8/20 µs] @ 20 kA: 75,2 kV
- Lightning current residual voltage [8/20 µs] @ 5 kA: 63 kV
- Steep current residual voltage @ 10 kA [1/20 µs]: 72,5 kV
- Switching impulse residual voltage [36/90 µs] @ 125 A: 50,2 kV
- Switching impulse residual voltage [36/90 µs] @ 500 A: 53 kV
- Tension de service maximale Uc: 19,2 kV
- Tension nominale Ur: 24 kV
800SA-10-27.5N
Réf. Nexans
- Lightning current residual voltage [8/20 µs] @ 10 kA: 75,6 kV
- Lightning current residual voltage [8/20 µs] @ 20 kA: 85 kV
- Lightning current residual voltage [8/20 µs] @ 5 kA: 71 kV
- Steep current residual voltage @ 10 kA [1/20 µs]: 81,6 kV
- Switching impulse residual voltage [36/90 µs] @ 125 A: 56,5 kV
- Switching impulse residual voltage [36/90 µs] @ 500 A: 59,6 kV
- Tension de service maximale Uc: 22 kV
- Tension nominale Ur: 27,5 kV
800SA-10-30N
Réf. Nexans
- Lightning current residual voltage [8/20 µs] @ 10 kA: 84 kV
- Lightning current residual voltage [8/20 µs] @ 20 kA: 94 kV
- Lightning current residual voltage [8/20 µs] @ 5 kA: 78,8 kV
- Steep current residual voltage @ 10 kA [1/20 µs]: 90,7 kV
- Switching impulse residual voltage [36/90 µs] @ 125 A: 62,8 kV
- Switching impulse residual voltage [36/90 µs] @ 500 A: 66,2 kV
- Tension de service maximale Uc: 24 kV
- Tension nominale Ur: 30 kV
800SA-10-33N
Réf. Nexans
- Lightning current residual voltage [8/20 µs] @ 10 kA: 92,4 kV
- Lightning current residual voltage [8/20 µs] @ 20 kA: 102,1 kV
- Lightning current residual voltage [8/20 µs] @ 5 kA: 86,7 kV
- Steep current residual voltage @ 10 kA [1/20 µs]: 99,7 kV
- Switching impulse residual voltage [36/90 µs] @ 125 A: 65 kV
- Switching impulse residual voltage [36/90 µs] @ 500 A: 68,5 kV
- Tension de service maximale Uc: 26,4 kV
- Tension nominale Ur: 33 kV
800SA-10-36N
Réf. Nexans
- Lightning current residual voltage [8/20 µs] @ 10 kA: 100,8 kV
- Lightning current residual voltage [8/20 µs] @ 20 kA: 112,7 kV
- Lightning current residual voltage [8/20 µs] @ 5 kA: 94,5 kV
- Steep current residual voltage @ 10 kA [1/20 µs]: 108,8 kV
- Switching impulse residual voltage [36/90 µs] @ 125 A: 75,3 kV
- Switching impulse residual voltage [36/90 µs] @ 500 A: 79,4 kV
- Tension de service maximale Uc: 28,8 kV
- Tension nominale Ur: 36 kV
800SA-10-40N
Réf. Nexans
- Lightning current residual voltage [8/20 µs] @ 10 kA: 112 kV
- Lightning current residual voltage [8/20 µs] @ 20 kA: 123,8 kV
- Lightning current residual voltage [8/20 µs] @ 5 kA: 105,1 kV
- Steep current residual voltage @ 10 kA [1/20 µs]: 120,9 kV
- Switching impulse residual voltage [36/90 µs] @ 125 A: 83,7 kV
- Switching impulse residual voltage [36/90 µs] @ 500 A: 88,3 kV
- Tension de service maximale Uc: 32 kV
- Tension nominale Ur: 40 kV
800SA-10-42N
Réf. Nexans
- Lightning current residual voltage [8/20 µs] @ 10 kA: 117,6 kV
- Lightning current residual voltage [8/20 µs] @ 20 kA: 130 kV
- Lightning current residual voltage [8/20 µs] @ 5 kA: 110,3 kV
- Steep current residual voltage @ 10 kA [1/20 µs]: 126,9 kV
- Switching impulse residual voltage [36/90 µs] @ 125 A: 87,9 kV
- Switching impulse residual voltage [36/90 µs] @ 500 A: 92,7 kV
- Tension de service maximale Uc: 33,6 kV
- Tension nominale Ur: 42 kV
800SA-10-45N
Réf. Nexans
- Lightning current residual voltage [8/20 µs] @ 10 kA: 126 kV
- Lightning current residual voltage [8/20 µs] @ 20 kA: 139,3 kV
- Lightning current residual voltage [8/20 µs] @ 5 kA: 118,2 kV
- Steep current residual voltage @ 10 kA [1/20 µs]: 136 kV
- Switching impulse residual voltage [36/90 µs] @ 125 A: 94,2 kV
- Switching impulse residual voltage [36/90 µs] @ 500 A: 99,3 kV
- Tension de service maximale Uc: 36 kV
- Tension nominale Ur: 45 kV
800SA-10-51N
Réf. Nexans
- Lightning current residual voltage [8/20 µs] @ 10 kA: 142,8 kV
- Lightning current residual voltage [8/20 µs] @ 20 kA: 160,4 kV
- Lightning current residual voltage [8/20 µs] @ 5 kA: 134 kV
- Steep current residual voltage @ 10 kA [1/20 µs]: 154,1 kV
- Switching impulse residual voltage [36/90 µs] @ 125 A: 106,7 kV
- Switching impulse residual voltage [36/90 µs] @ 500 A: 112,5 kV
- Tension de service maximale Uc: 40,8 kV
- Tension nominale Ur: 51 kV
800SA-10-6N
Réf. Nexans
- Lightning current residual voltage [8/20 µs] @ 10 kA: 17,2 kV
- Lightning current residual voltage [8/20 µs] @ 20 kA: 19,3 kV
- Lightning current residual voltage [8/20 µs] @ 5 kA: 16,2 kV
- Steep current residual voltage @ 10 kA [1/20 µs]: 18,5 kV
- Switching impulse residual voltage [36/90 µs] @ 125 A: 12,6 kV
- Switching impulse residual voltage [36/90 µs] @ 500 A: 13,2 kV
- Tension de service maximale Uc: 4,8 kV
- Tension nominale Ur: 6 kV
800SA-10-9N
Réf. Nexans
- Lightning current residual voltage [8/20 µs] @ 10 kA: 24,5 kV
- Lightning current residual voltage [8/20 µs] @ 20 kA: 27,5 kV
- Lightning current residual voltage [8/20 µs] @ 5 kA: 23 kV
- Steep current residual voltage @ 10 kA [1/20 µs]: 26,3 kV
- Switching impulse residual voltage [36/90 µs] @ 125 A: 18,1 kV
- Switching impulse residual voltage [36/90 µs] @ 500 A: 19,1 kV
- Tension de service maximale Uc: 7,2 kV
- Tension nominale Ur: 9 kV
Description
Description
Normes
-
InternationalIEC 60099-4
Application
Surge arrester designed to protect 12, 24, 36 and 42 kV class components, including transformers, equipment, cable and accessories from high voltage surges resulting from lightning or switching. It has been designed to be used with the 480TB, 484TB and 489TB separable tee connectors.
Technical characteristics
- Station class (SL); Qrs = 1.0 As.
- Energy absorption 4.0 kJ/kV_Ur.
- This surge arrester is a metal oxide varistor surge arrester in an elbow configuration.
- Each arrester is tested for AC withstand, partial discharge and critical voltage prior to leaving the factory.

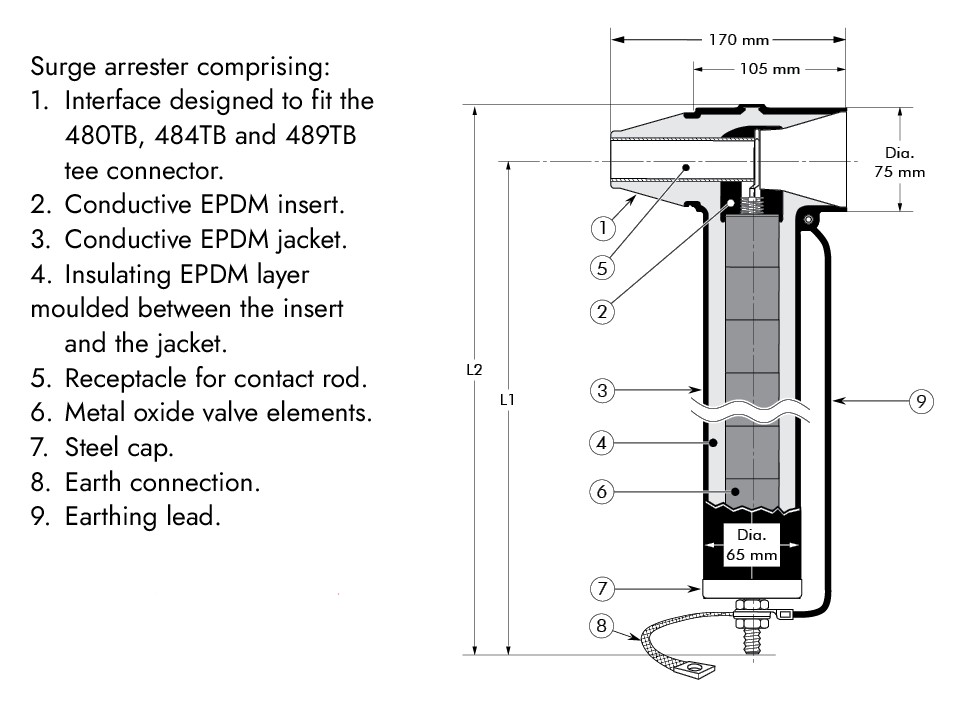

Design 800SA
800SA dimensions
| Reference | Dimesnions (mm) (indicative) | |
| L1 | L2 | |
| 8000SA-10-6N | 270 | 310 |
| 8000SA-10-6N | 270 | 310 |
| 8000SA-10-9N | 270 | 310 |
| 8000SA-10-12N | 270 | 310 |
| 8000SA-10-15N | 270 | 310 |
| 8000SA-10-18N | 270 | 310 |
| 8000SA-10-22N | 270 | 310 |
| 8000SA-10-24N | 370 | 410 |
| 8000SA-10-27.5N | 370 | 410 |
| 8000SA-10-30N | 370 | 410 |
| 8000SA-10-33N | 370 | 410 |
| 8000SA-10-36N | 370 | 410 |
| 8000SA-10-40N | 470 | 510 |
| 8000SA-10-42N | 470 | 510 |
| 8000SA-10-45N | 470 | 510 |
| 8000SA-10-51N | 470 | 510 |
Caractéristiques
Caractéristiques
Caractéristiques électriques
Caractéristiques électriques
High current impulse withstand
100 kA
Nominal discharge current In
10 kA
Caractéristiques d'utilisation
Caractéristiques d'utilisation
Interface
Interface C (630 A)
Ressources
Ressources
Information de livraison
The range presented in this page is a broad picture of all the products. For more detailed information about product characteristics, please reach for your local customer service.
