MV Surge Arresters 400PB-10SA
MV Surge Arresters 400PB-10SA
Surge arresters for interface C. Up to 42 kV.
Lire plus400PB-10SA-12N
Réf. Nexans
- Lightning current residual voltage [8/20 µs] @ 10 kA: 33,6 kV
- Lightning current residual voltage [8/20 µs] @ 20 kA: 37,1 kV
- Lightning current residual voltage [8/20 µs] @ 5 kA: 31,5 kV
- Steep current residual voltage @ 10 kA [1/20 µs]: 36,3 kV
- Switching impulse residual voltage [36/90 µs] @ 125 A: 25,1 kV
- Switching impulse residual voltage [36/90 µs] @ 500 A: 26,5 kV
- Tension de service maximale Uc: 9,6 kV
- Tension nominale Ur: 12 kV
400PB-10SA-15N
Réf. Nexans
- Lightning current residual voltage [8/20 µs] @ 10 kA: 42 kV
- Lightning current residual voltage [8/20 µs] @ 20 kA: 46,4 kV
- Lightning current residual voltage [8/20 µs] @ 5 kA: 39,4 kV
- Steep current residual voltage @ 10 kA [1/20 µs]: 45,3 kV
- Switching impulse residual voltage [36/90 µs] @ 125 A: 31,4 kV
- Switching impulse residual voltage [36/90 µs] @ 500 A: 33,1 kV
- Tension de service maximale Uc: 12 kV
- Tension nominale Ur: 15 kV
400PB-10SA-18N
Réf. Nexans
- Lightning current residual voltage [8/20 µs] @ 10 kA: 50,4 kV
- Lightning current residual voltage [8/20 µs] @ 20 kA: 56,4 kV
- Lightning current residual voltage [8/20 µs] @ 5 kA: 47,3 kV
- Steep current residual voltage @ 10 kA [1/20 µs]: 54,4 kV
- Switching impulse residual voltage [36/90 µs] @ 125 A: 37,7 kV
- Switching impulse residual voltage [36/90 µs] @ 500 A: 39,7 kV
- Tension de service maximale Uc: 14,4 kV
- Tension nominale Ur: 18 kV
400PB-10SA-22N
Réf. Nexans
- Lightning current residual voltage [8/20 µs] @ 10 kA: 61,6 kV
- Lightning current residual voltage [8/20 µs] @ 20 kA: 68,1 kV
- Lightning current residual voltage [8/20 µs] @ 5 kA: 57,8 kV
- Steep current residual voltage @ 10 kA [1/20 µs]: 66,5 kV
- Switching impulse residual voltage [36/90 µs] @ 125 A: 46 kV
- Switching impulse residual voltage [36/90 µs] @ 500 A: 48,5 kV
- Tension de service maximale Uc: 17,6 kV
- Tension nominale Ur: 22 kV
400PB-10SA-24N
Réf. Nexans
- Lightning current residual voltage [8/20 µs] @ 10 kA: 67,2 kV
- Lightning current residual voltage [8/20 µs] @ 20 kA: 75,2 kV
- Lightning current residual voltage [8/20 µs] @ 5 kA: 63 kV
- Steep current residual voltage @ 10 kA [1/20 µs]: 72,5 kV
- Switching impulse residual voltage [36/90 µs] @ 125 A: 50,2 kV
- Switching impulse residual voltage [36/90 µs] @ 500 A: 53 kV
- Tension de service maximale Uc: 19,2 kV
- Tension nominale Ur: 24 kV
400PB-10SA-27.5N
Réf. Nexans
- Lightning current residual voltage [8/20 µs] @ 10 kA: 75,6 kV
- Lightning current residual voltage [8/20 µs] @ 20 kA: 85 kV
- Lightning current residual voltage [8/20 µs] @ 5 kA: 71 kV
- Steep current residual voltage @ 10 kA [1/20 µs]: 81,6 kV
- Switching impulse residual voltage [36/90 µs] @ 125 A: 56,5 kV
- Switching impulse residual voltage [36/90 µs] @ 500 A: 59,6 kV
- Tension de service maximale Uc: 22 kV
- Tension nominale Ur: 27,5 kV
400PB-10SA-30N
Réf. Nexans
- Lightning current residual voltage [8/20 µs] @ 10 kA: 84 kV
- Lightning current residual voltage [8/20 µs] @ 20 kA: 94 kV
- Lightning current residual voltage [8/20 µs] @ 5 kA: 78,8 kV
- Steep current residual voltage @ 10 kA [1/20 µs]: 90,7 kV
- Switching impulse residual voltage [36/90 µs] @ 125 A: 62,8 kV
- Switching impulse residual voltage [36/90 µs] @ 500 A: 66,2 kV
- Tension de service maximale Uc: 24 kV
- Tension nominale Ur: 30 kV
400PB-10SA-33N
Réf. Nexans
- Lightning current residual voltage [8/20 µs] @ 10 kA: 92,4 kV
- Lightning current residual voltage [8/20 µs] @ 20 kA: 102,1 kV
- Lightning current residual voltage [8/20 µs] @ 5 kA: 86,7 kV
- Steep current residual voltage @ 10 kA [1/20 µs]: 99,7 kV
- Switching impulse residual voltage [36/90 µs] @ 125 A: 65 kV
- Switching impulse residual voltage [36/90 µs] @ 500 A: 68,5 kV
- Tension de service maximale Uc: 26,4 kV
- Tension nominale Ur: 33 kV
400PB-10SA-36N
Réf. Nexans
- Lightning current residual voltage [8/20 µs] @ 10 kA: 100,8 kV
- Lightning current residual voltage [8/20 µs] @ 20 kA: 112,7 kV
- Lightning current residual voltage [8/20 µs] @ 5 kA: 94,5 kV
- Steep current residual voltage @ 10 kA [1/20 µs]: 108,8 kV
- Switching impulse residual voltage [36/90 µs] @ 125 A: 75,3 kV
- Switching impulse residual voltage [36/90 µs] @ 500 A: 79,4 kV
- Tension de service maximale Uc: 28,8 kV
- Tension nominale Ur: 36 kV
400PB-10SA-40N
Réf. Nexans
- Lightning current residual voltage [8/20 µs] @ 10 kA: 112 kV
- Lightning current residual voltage [8/20 µs] @ 20 kA: 123,8 kV
- Lightning current residual voltage [8/20 µs] @ 5 kA: 105,1 kV
- Steep current residual voltage @ 10 kA [1/20 µs]: 120,9 kV
- Switching impulse residual voltage [36/90 µs] @ 125 A: 83,7 kV
- Switching impulse residual voltage [36/90 µs] @ 500 A: 88,3 kV
- Tension de service maximale Uc: 32 kV
- Tension nominale Ur: 40 kV
400PB-10SA-42N
Réf. Nexans
- Lightning current residual voltage [8/20 µs] @ 10 kA: 117,6 kV
- Lightning current residual voltage [8/20 µs] @ 20 kA: 130 kV
- Lightning current residual voltage [8/20 µs] @ 5 kA: 110,3 kV
- Steep current residual voltage @ 10 kA [1/20 µs]: 126,9 kV
- Switching impulse residual voltage [36/90 µs] @ 125 A: 87,9 kV
- Switching impulse residual voltage [36/90 µs] @ 500 A: 92,7 kV
- Tension de service maximale Uc: 33,6 kV
- Tension nominale Ur: 42 kV
400PB-10SA-45N
Réf. Nexans
- Lightning current residual voltage [8/20 µs] @ 10 kA: 126 kV
- Lightning current residual voltage [8/20 µs] @ 20 kA: 139,3 kV
- Lightning current residual voltage [8/20 µs] @ 5 kA: 118,2 kV
- Steep current residual voltage @ 10 kA [1/20 µs]: 136 kV
- Switching impulse residual voltage [36/90 µs] @ 125 A: 94,2 kV
- Switching impulse residual voltage [36/90 µs] @ 500 A: 99,3 kV
- Tension de service maximale Uc: 36 kV
- Tension nominale Ur: 45 kV
400PB-10SA-51N
Réf. Nexans
- Lightning current residual voltage [8/20 µs] @ 10 kA: 142,8 kV
- Lightning current residual voltage [8/20 µs] @ 20 kA: 160,4 kV
- Lightning current residual voltage [8/20 µs] @ 5 kA: 134 kV
- Steep current residual voltage @ 10 kA [1/20 µs]: 154,1 kV
- Switching impulse residual voltage [36/90 µs] @ 125 A: 106,7 kV
- Switching impulse residual voltage [36/90 µs] @ 500 A: 112,5 kV
- Tension de service maximale Uc: 40,8 kV
- Tension nominale Ur: 51 kV
400PB-10SA-6N
Réf. Nexans
- Lightning current residual voltage [8/20 µs] @ 10 kA: 17,2 kV
- Lightning current residual voltage [8/20 µs] @ 20 kA: 19,3 kV
- Lightning current residual voltage [8/20 µs] @ 5 kA: 16,2 kV
- Steep current residual voltage @ 10 kA [1/20 µs]: 18,5 kV
- Switching impulse residual voltage [36/90 µs] @ 125 A: 12,6 kV
- Switching impulse residual voltage [36/90 µs] @ 500 A: 13,2 kV
- Tension de service maximale Uc: 4,8 kV
- Tension nominale Ur: 6 kV
400PB-10SA-9N
Réf. Nexans
- Lightning current residual voltage [8/20 µs] @ 10 kA: 24,5 kV
- Lightning current residual voltage [8/20 µs] @ 20 kA: 27,5 kV
- Lightning current residual voltage [8/20 µs] @ 5 kA: 23 kV
- Steep current residual voltage @ 10 kA [1/20 µs]: 26,3 kV
- Switching impulse residual voltage [36/90 µs] @ 125 A: 18,1 kV
- Switching impulse residual voltage [36/90 µs] @ 500 A: 19,1 kV
- Tension de service maximale Uc: 7,2 kV
- Tension nominale Ur: 9 kV
Description
Description
Normes
-
InternationalIEC 60099-4
Application
Surge arrester designed to protect medium voltage components, including transformers, equipment, cable and accessories from high voltage surges resulting from lightning or switching.
Technical characteristics
- Station class (SL); Qrs = 1.0 As.
- Energy absorption 4.0 kJ/kV_Ur.
- This surge arrester is a metal oxide varistor surge arrester in an elbow configuration.
- Each arrester is tested for AC withstand, partial discharge and critical voltage prior to leaving the factory.

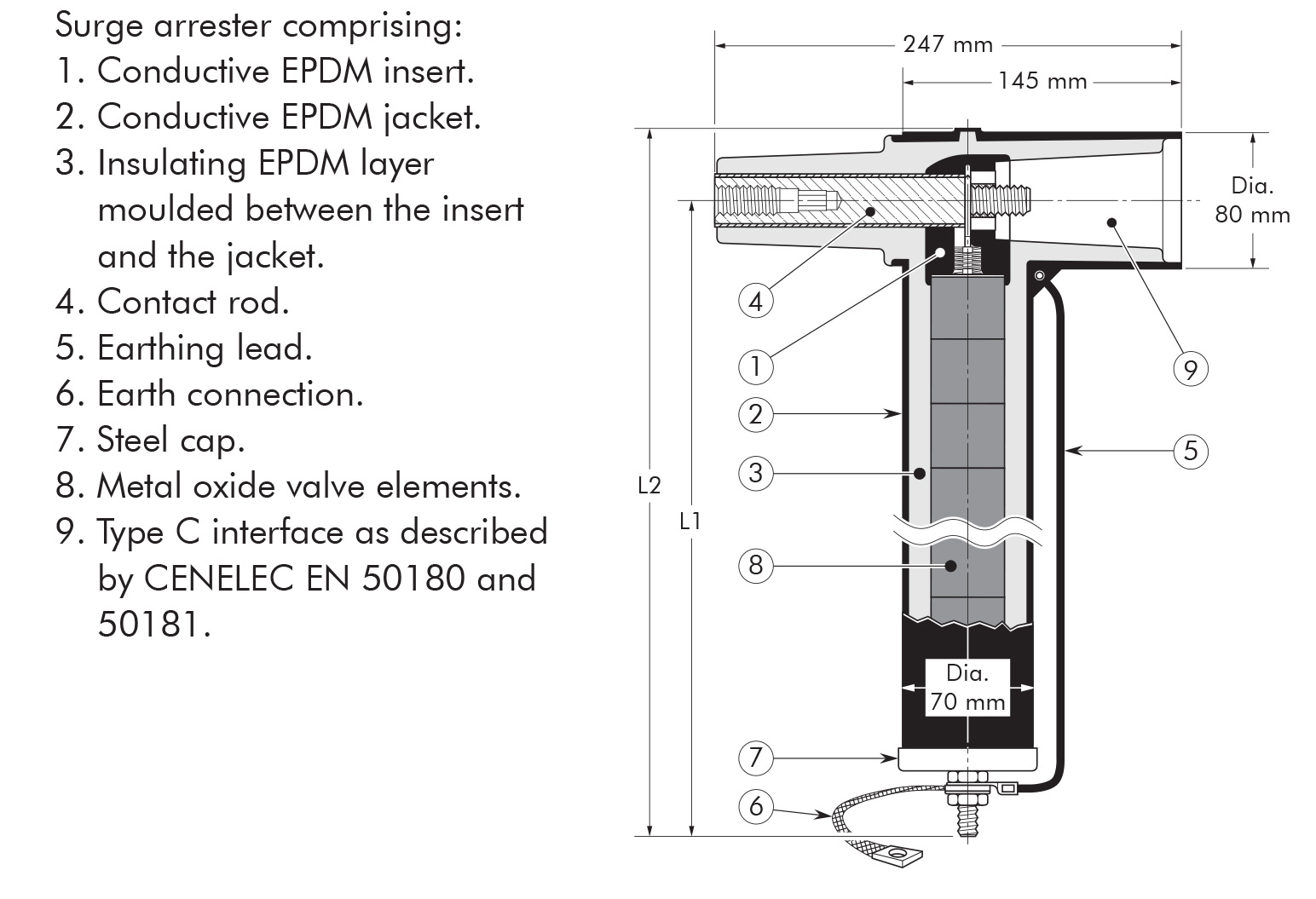

Design 400PB-10SA
Dimensions 400PB-10SA
| Reference | Dimensions (mm) (indicative) | |
| L1 | L2 | |
| 400PB-10SA-6N | 270 | 310 |
| 400PB-10SA-9N | 270 | 310 |
| 400PB-10SA-12N | 270 | 310 |
| 400PB-10SA-15N | 270 | 310 |
| 400PB-10SA-18N | 270 | 310 |
| 400PB-10SA-22N | 270 | 310 |
| 400PB-10SA-24N | 370 | 410 |
| 400PB-10SA-27.5N | 370 | 410 |
| 400PB-10SA30N | 370 | 410 |
| 400PB-10SA-33N | 370 | 410 |
| 400PB-10SA-36N | 370 | 410 |
| 400PB-10SA-40N | 470 | 510 |
| 400PB-10SA-42N | 470 | 510 |
| 400PB-10SA-45N | 470 | 510 |
| 400PB-10SA-51N | 470 | 510 |
Caractéristiques
Caractéristiques
Caractéristiques électriques
Caractéristiques électriques
High current impulse withstand
100 kA
Nominal discharge current In
10 kA
Caractéristiques d'utilisation
Caractéristiques d'utilisation
Interface
Interface C (630 A)
Ressources
Ressources
Information de livraison
The range presented in this page is a broad picture of all the products. For more detailed information about product characteristics, please reach for your local customer service.
