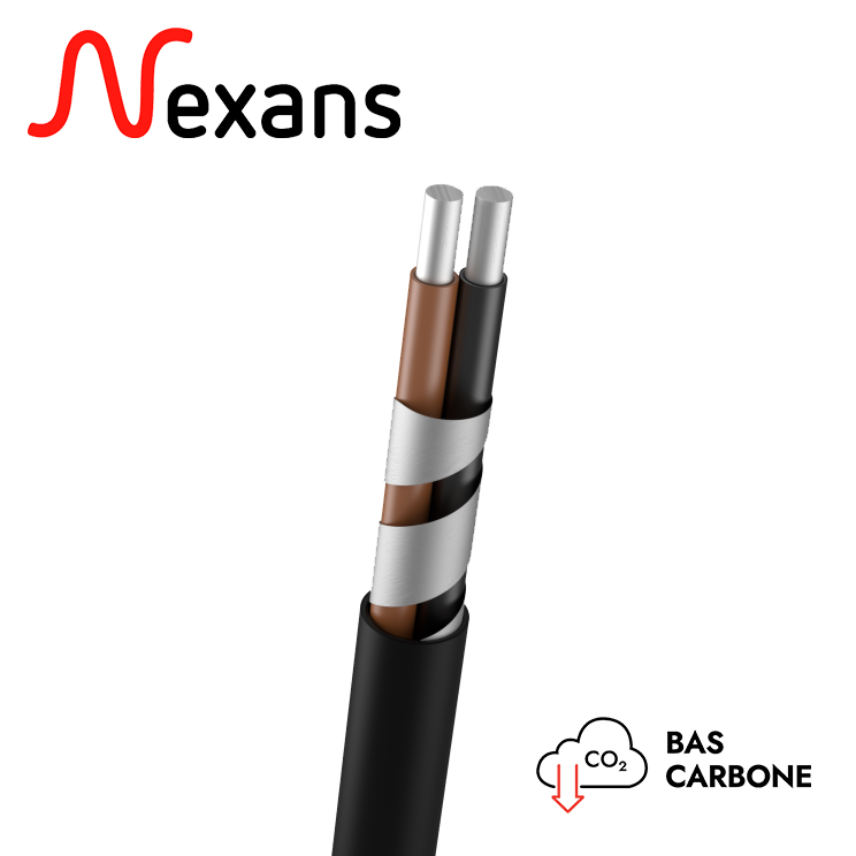

H1-XDV-AU 2x35

Description

Description

Standards

  • National
    NF C33-210

Service connection single phase and three phase cables

Application

Low voltage buried cables for connection public networks.

Characteristics

The three phase conductors are made of either circular solid or stranded aluminum.

The neutral conductor made of solidor stranded aluminum is circular and sheathed with lead.

The watertightness between the lead sheath is made with a waterproof material only on single phase cables. On three-phase cables it can be made on demand.

Stranding

The phase conductors and neutral are assembled in a way, which makes them easy to separate to splice with branching wires.

Over the phase and neutral conductors, a galvanized steel armour is wound in direct contact with the lead sheath. This construction is then sheathed with PVC, with high mechanical properties.

Filler : PVC for single phase cable except 50 mm2 and three phase cable 16 mm2.

Sheath : on demand, antitermite treatment possible on demand.

Marking

  • H1 XDV-AU NxS1 + 1xS2 MINIDISTRICABLE® 211 NF C33-210 «manufacturing number/manufacturing year» «metric marks/manufacturing date».​
  • N : number of phase conductors,
  • S1 : cross section of phase conductors,
  • S2 : cross section of neutral conductor.



Electrical characteristics

Rated Voltage : 0.6/1 kV.

Test Voltage : 3.5 kV for 15 minutes.

Resistance of the sheath to voltage surges : 1.2/50 µs with positive or negative polarity and a peak value of 20 kV.

Low carbon offer

Low carbon at a glance

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Pilot wires
None
Conductor flexibility
Solid class 1
Conductor material
Aluminum
Conductor shape
Circular solid (RE)
Insulation
XLPE
Material of filler / inner sheath
PVC
Outer sheath
PVC
Protection
Watertight textile material
Screen
Two unlapped galvanized mild steel tapes
Sheath colour
Black

Dimensional characteristics

Dimensional characteristics

Number of phases
1
Conductor cross-section
35 mm²
Approximate weight
880 kg/km
Maximum outer diameter
27.0 mm
Minimum outer diameter
20.0 mm
Neutral conductor section (when smaller)
35 mm²
Number of cores
2

Electrical characteristics

Electrical characteristics

Max. linear resistance, phase conductor
0.868 Ohm/km
Permissible current rating in open air
135 A
Permissible current rating when buried
160 A
Rated Voltage Uo/U (Um)
0,6/1 kV
Voltage drop, 3 conductors
- V/A.km
Voltage drop, single phase
1.77 V/A.km

Usage characteristics

Usage characteristics

Length
- m
Resistant to termites
No
Packaging
Cut to length
Minimum static operating bending radius
220 mm
