Products

Nexans H05V-K VISIBOX 1x0.5 BLACK C100m To be removed

Nexans ref. 10184989 - Country ref. 01272029

  • Packaging: Coil (100m)
  • Sheath colour: Black - RAL 9004
  • Conductor cross-section: 0.5 mm²
  • Approximate weight: 9.3 kg/km
  • Nominal outer diameter: 2.6 mm
  • Length: 100 m



Nexans H05V-K VISIBOX 1x0.5 RED C100m To be removed

Nexans ref. 10184990 - Country ref. 01272030

  • Packaging: Coil (100m)
  • Sheath colour: Red - RAL 3031
  • Conductor cross-section: 0.5 mm²
  • Approximate weight: 9.3 kg/km
  • Nominal outer diameter: 2.6 mm
  • Length: 100 m



Nexans H05V-K VISIBOX 1x0.5 VERY LIGHT BLUE C100m To be removed

Nexans ref. 10184988 - Country ref. 01272028

  • Packaging: Coil (100m)
  • Sheath colour: Very Light Blue - RAL 5024
  • Conductor cross-section: 0.5 mm²
  • Approximate weight: 9.3 kg/km
  • Nominal outer diameter: 2.6 mm
  • Length: 100 m



Nexans H05V-K VISIBOX 1x0.75 BLACK C100m To be removed

Nexans ref. 10185089 - Country ref. 01272039

  • Packaging: Coil (100m)
  • Sheath colour: Black - RAL 9004
  • Conductor cross-section: 0.75 mm²
  • Approximate weight: 12 kg/km
  • Nominal outer diameter: 2.8 mm
  • Length: 100 m



Nexans H05V-K VISIBOX 1x0.75 BROWN C100m To be removed

Nexans ref. 10185087 - Country ref. 01272037

  • Packaging: Coil (100m)
  • Sheath colour: Brown - RAL 8002
  • Conductor cross-section: 0.75 mm²
  • Approximate weight: 12 kg/km
  • Nominal outer diameter: 2.8 mm
  • Length: 100 m



Nexans H05V-K VISIBOX 1x0.75 DARK BLUE C100m To be removed

Nexans ref. 10185085 - Country ref. 01272035

  • Packaging: Coil (100m)
  • Sheath colour: Dark Blue - RAL 5010
  • Conductor cross-section: 0.75 mm²
  • Approximate weight: 12 kg/km
  • Nominal outer diameter: 2.8 mm
  • Length: 100 m



Nexans H05V-K VISIBOX 1G0.75 GREEN/YELLOW C100m To be removed

Nexans ref. 10184992 - Country ref. 01272043

  • Packaging: Coil (100m)
  • Sheath colour: Green - RAL 6024 /Yelow - RAL1012
  • Conductor cross-section: 0.75 mm²
  • Approximate weight: 12 kg/km
  • Nominal outer diameter: 2.8 mm
  • Length: 100 m



Nexans H05V-K VISIBOX 1x0.75 IVOIRY C100m To be removed

Nexans ref. 10184993 - Country ref. 01272031

  • Packaging: Coil (100m)
  • Sheath colour: Ivory White - RAL 1015
  • Conductor cross-section: 0.75 mm²
  • Approximate weight: 12 kg/km
  • Nominal outer diameter: 2.8 mm
  • Length: 100 m



Nexans H05V-K VISIBOX 1x0.75 MEDIUM BLUE C100m To be removed

Nexans ref. 10141565 - Country ref. 01272034

  • Packaging: Coil (100m)
  • Sheath colour: Medium Blue - RAL 5015
  • Conductor cross-section: 0.75 mm²
  • Approximate weight: 12 kg/km
  • Nominal outer diameter: 2.8 mm
  • Length: 100 m



Nexans H05V-K VISIBOX 1x0.75 BN C100m To be removed

Nexans ref. 10141608 - Country ref. 01272036

  • Packaging: Coil (100m)
  • Sheath colour: Night Blue - RAL 5003
  • Conductor cross-section: 0.75 mm²
  • Approximate weight: 12 kg/km
  • Nominal outer diameter: 2.8 mm
  • Length: 100 m



Nexans EASYBOX H05VK 1x0,75 ORANGE 4000m

Nexans ref. 10254881

  • Packaging: Box (4000m)
  • Sheath colour: Orange
  • Conductor cross-section: 0.75 mm²
  • Approximate weight: - kg/km
  • Nominal outer diameter: 2.8 mm
  • Length: 4000 m



Nexans H05V-K VISIBOX 1x0.75 ORANGE C100m To be removed

Nexans ref. 10185090 - Country ref. 01272040

  • Packaging: Coil (100m)
  • Sheath colour: Orange - RAL 2010
  • Conductor cross-section: 0.75 mm²
  • Approximate weight: 12 kg/km
  • Nominal outer diameter: 2.8 mm
  • Length: 100 m



Nexans EASYBOX H05VK 1x0,75 RED 4000m

Nexans ref. 10261564

  • Packaging: Box (4000m)
  • Sheath colour: Red
  • Conductor cross-section: 0.75 mm²
  • Approximate weight: - kg/km
  • Nominal outer diameter: 2.8 mm
  • Length: 4000 m



Nexans H05V-K VISIBOX 1x0.75 VERY LIGHT BLUE C 100m To be removed

Nexans ref. 10141564 - Country ref. 01272032

  • Packaging: Coil (100m)
  • Sheath colour: Very Light Blue - RAL 5024
  • Conductor cross-section: 0.75 mm²
  • Approximate weight: 12 kg/km
  • Nominal outer diameter: 2.8 mm
  • Length: 100 m



Nexans H05V-K VISIBOX 1x0.75 PURPLE C100m To be removed

Nexans ref. 10185093 - Country ref. 01272042

  • Packaging: Coil (100m)
  • Sheath colour: Violet - RAL 4005
  • Conductor cross-section: 0.75 mm²
  • Approximate weight: 12 kg/km
  • Nominal outer diameter: 2.8 mm
  • Length: 100 m



Nexans H05V-K VISIBOX 1x1 BLACK C100m

Nexans ref. 10185121 - Country ref. 01272053

  • Packaging: Coil (100m)
  • Sheath colour: Black - RAL 9004
  • Conductor cross-section: 1 mm²
  • Approximate weight: 14 kg/km
  • Nominal outer diameter: 3.0 mm
  • Length: 100 m



Nexans H05V-K VISIBOX 1x1 BROWN C100m

Nexans ref. 10185119 - Country ref. 01272051

  • Packaging: Coil (100m)
  • Sheath colour: Brown - RAL 8002
  • Conductor cross-section: 1 mm²
  • Approximate weight: 14 kg/km
  • Nominal outer diameter: 3.0 mm
  • Length: 100 m



Nexans H05V-K VISIBOX 1x1 DARK BLUE C100m

Nexans ref. 10185117 - Country ref. 01272049

  • Packaging: Coil (100m)
  • Sheath colour: Dark Blue - RAL 5010
  • Conductor cross-section: 1 mm²
  • Approximate weight: 14 kg/km
  • Nominal outer diameter: 3.0 mm
  • Length: 100 m



Nexans H05V-K VISIBOX 1G1 GREEN/YELLOW C100m

Nexans ref. 10185114 - Country ref. 01272057

  • Packaging: Coil (100m)
  • Sheath colour: Green - RAL 6024 /Yelow - RAL1012
  • Conductor cross-section: 1 mm²
  • Approximate weight: 14 kg/km
  • Nominal outer diameter: 3.0 mm
  • Length: 100 m



Nexans H05V-K VISIBOX 1x1 GREY C100m

Nexans ref. 10185120 - Country ref. 01272052

  • Packaging: Coil (100m)
  • Sheath colour: Grey - RAL 7000
  • Conductor cross-section: 1 mm²
  • Approximate weight: 14 kg/km
  • Nominal outer diameter: 3.0 mm
  • Length: 100 m



Nexans H05V-K VISIBOX 1x1 IVOIRY C100m To be removed

Nexans ref. 10185118 - Country ref. 01272045

  • Packaging: Coil (100m)
  • Sheath colour: Ivory White - RAL 1015
  • Conductor cross-section: 1 mm²
  • Approximate weight: 14 kg/km
  • Nominal outer diameter: 3.0 mm
  • Length: 100 m



Nexans H05V-K VISIBOX 1x1 LIGHT BLUE C100m To be removed

Nexans ref. 10185116 - Country ref. 01272047

  • Packaging: Coil (100m)
  • Sheath colour: Ligth Blue - RAL 5012
  • Conductor cross-section: 1 mm²
  • Approximate weight: 14 kg/km
  • Nominal outer diameter: 3.0 mm
  • Length: 100 m



Nexans H05V-K VISIBOX 1x1 MEDIUM BLUE C100m

Nexans ref. 10141611 - Country ref. 01272048

  • Packaging: Coil (100m)
  • Sheath colour: Medium Blue - RAL 5015
  • Conductor cross-section: 1 mm²
  • Approximate weight: 14 kg/km
  • Nominal outer diameter: 3.0 mm
  • Length: 100 m



Nexans H05V-K VISIBOX 1x1 BN C100m To be removed

Nexans ref. 10141612 - Country ref. 01272050

  • Packaging: Coil (100m)
  • Sheath colour: Night Blue - RAL 5003
  • Conductor cross-section: 1 mm²
  • Approximate weight: 14 kg/km
  • Nominal outer diameter: 3.0 mm
  • Length: 100 m



Nexans H05V-K VISIBOX 1x1 RED C100m

Nexans ref. 10185123 - Country ref. 01272055

  • Packaging: Coil (100m)
  • Sheath colour: Red - RAL 3031
  • Conductor cross-section: 1 mm²
  • Approximate weight: 14 kg/km
  • Nominal outer diameter: 2.5 mm
  • Length: 100 m



Nexans H05V-K VISIBOX 1x1 VERY LIGHT BLUE C100m To be removed

Nexans ref. 10141609 - Country ref. 01272046

  • Packaging: Coil (100m)
  • Sheath colour: Very Light Blue - RAL 5024
  • Conductor cross-section: 1 mm²
  • Approximate weight: 14 kg/km
  • Nominal outer diameter: 3.0 mm
  • Length: 100 m



Nexans H05V-K VISIBOX 1x1 PURPLE C100m To be removed

Nexans ref. 10185124 - Country ref. 01272056

  • Packaging: Coil (100m)
  • Sheath colour: Violet - RAL 4005
  • Conductor cross-section: 1 mm²
  • Approximate weight: 14 kg/km
  • Nominal outer diameter: 3.0 mm
  • Length: 100 m



Description

Description

Standards

  • International
    EN 50525-2-31; HD 21.3; IEC 60227-6
  • National
    NF C32-201/3

Application

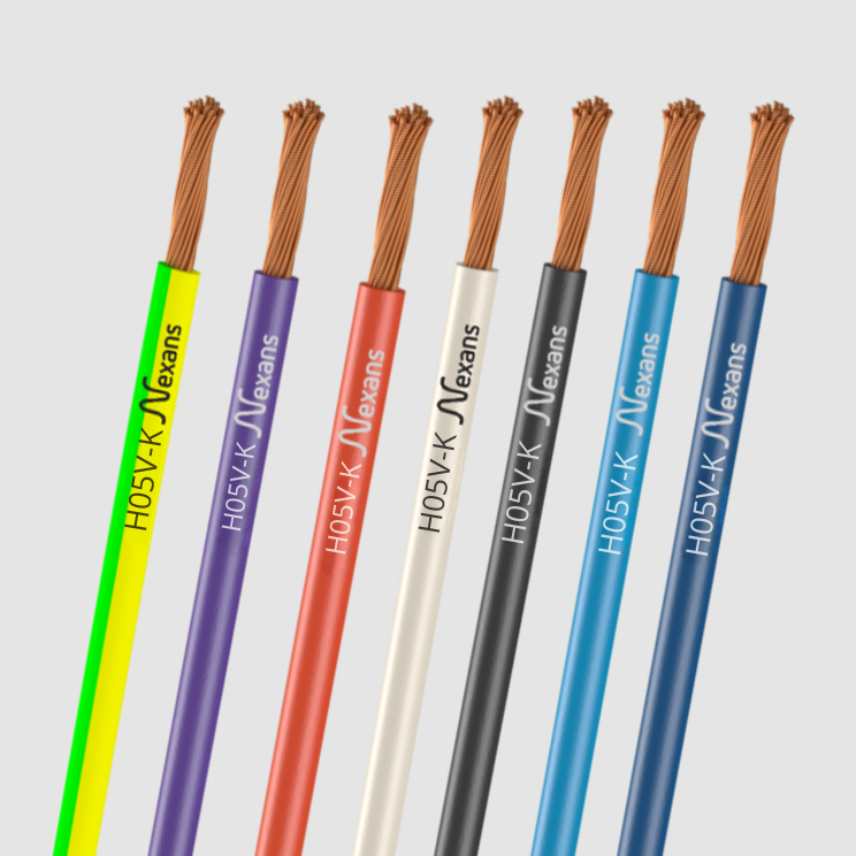

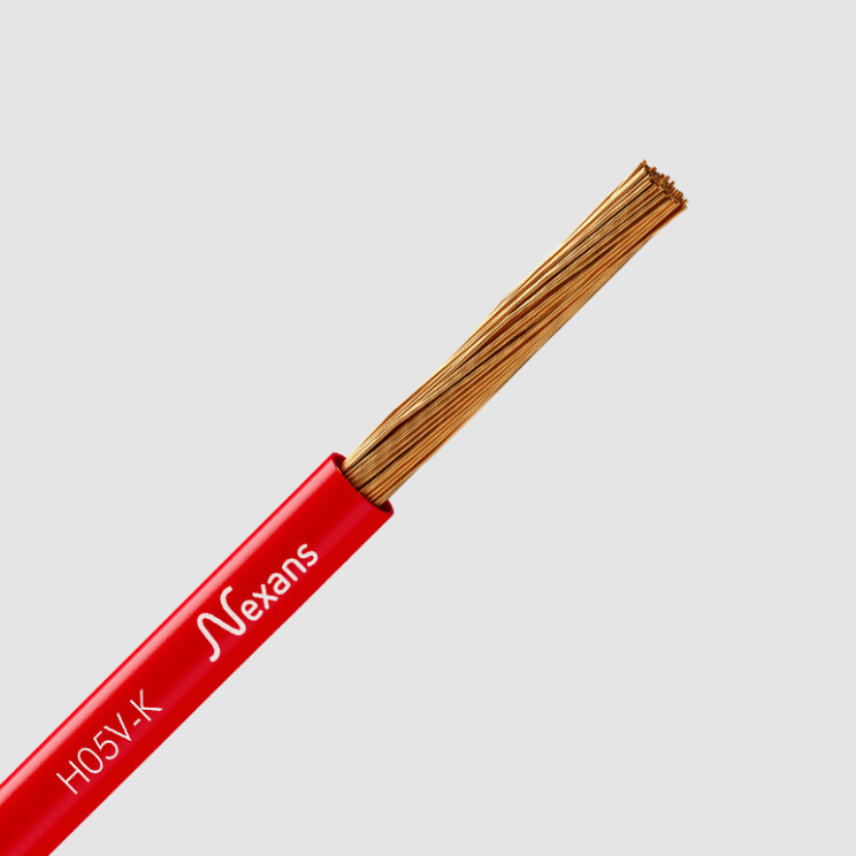

Nexans H05V-K cores are used for internal equipment wiring.

Installation

Open air, or in conduits, or trunking.

Marking

S.Y + USE HAR H05VK - N° plant.

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor flexibility
Flexible class 5
Conductor material
Bare copper
Conductor shape
Circular
Insulation
PVC
Lead free
-

Electrical characteristics

Electrical characteristics

Rated Voltage Uo/U (Um)
300/500 V

Mechanical characteristics

Mechanical characteristics

Mechanical resistance to impacts
Low
Cable flexibility
Flexible

Usage characteristics

Usage characteristics

Max. conductor temperature in service
70 °C
Short-circuit max. conductor temperature
160 °C
Operating temperature, range
-5 ... 60 °C
Flame retardant
C2, NF C 32-070
Weather resistance
No
Chemical resistance
Accidental
Water proof
Low

Resources

Resources

Documentation

Licence H05V-K pdf — 63.5 kB
