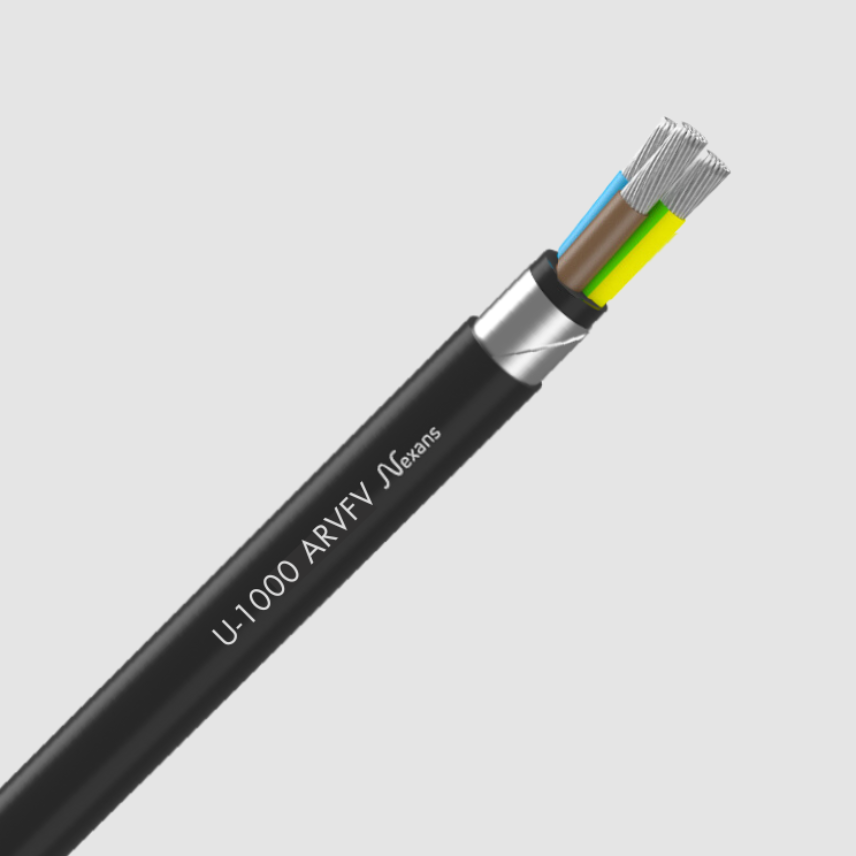

Nexans U-1000 ARVFV 3G25 GL

Application

Nexans U-1000 ARVFV armoured aluminium cables can be used in all low voltage power installations.


Installation

These cables are suitable for direct burial without additionnal protection , for installation on cables trays or in conducts where mechanical protection is necessary (bursting risk).

Design

• Conductor : stranded circular aluminium class 2
• Insulation : XLPE- cores identification by colours
• Laying up : with fillers
• Inner sheat : lead free PVC
• Armour : steel or aluminium tapes
• Outer sheath : Lead free black PVC

Construction according to AD8 is possible on request.

Marking

U-1000 ARVFV NF-USE N° factory S.Y+  N (x or G) S mm²

• N = number of cores
• S = section in mm²
• x = without Green-Yellow
• G = with Green-Yellow
