Nexans ALARM / DOORPHONE 5P AWG24 D150m

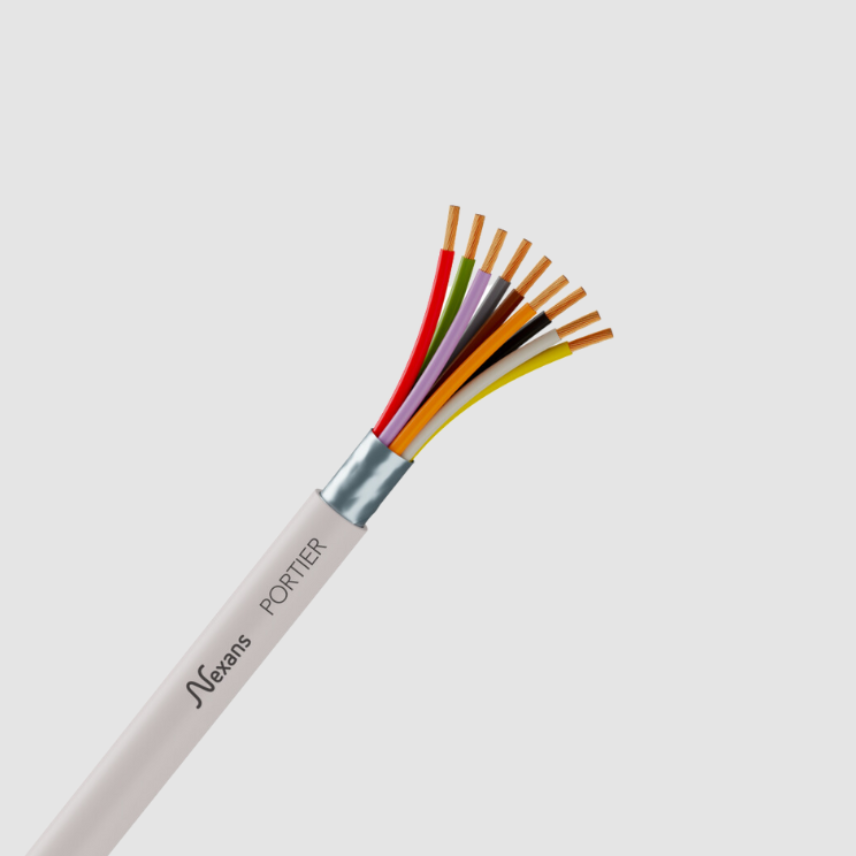

Nexans ALARM / DOORPHONE 5P AWG24 D150m
Alarm / doorphone
Read more- Nexans ref. : 10097456
- EAN : 3170230000303
Description
Description
Standards
-
InternationalManufacturer specification
Application
Used for self-protection opening detectors or sirens with self-protection but not self-powered (2 pairs).
Used for complex installations of telephone transmitters with several inputs and outputs (4 pairs and more).
Each conductor has a different color to facilitate installation and identification during connection.
The white outer sheath makes the installation more discreet.
Installation
It is necessary to pass the cable in a different electric sheath from that of the high current supply network.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor material
Copper-clad aluminum
Insulation
PVC
Outer sheath
PVC
Sheath colour
White
Conductor flexibility
Stranded
Conductor shape
Circular
Screen
ALU/PET screening foil
Dimensional characteristics
Dimensional characteristics
Approximate weight
- kg/km
Conductor cross-section
0.205 mm²
Number of cores
10
Outer Diameter (mm)
