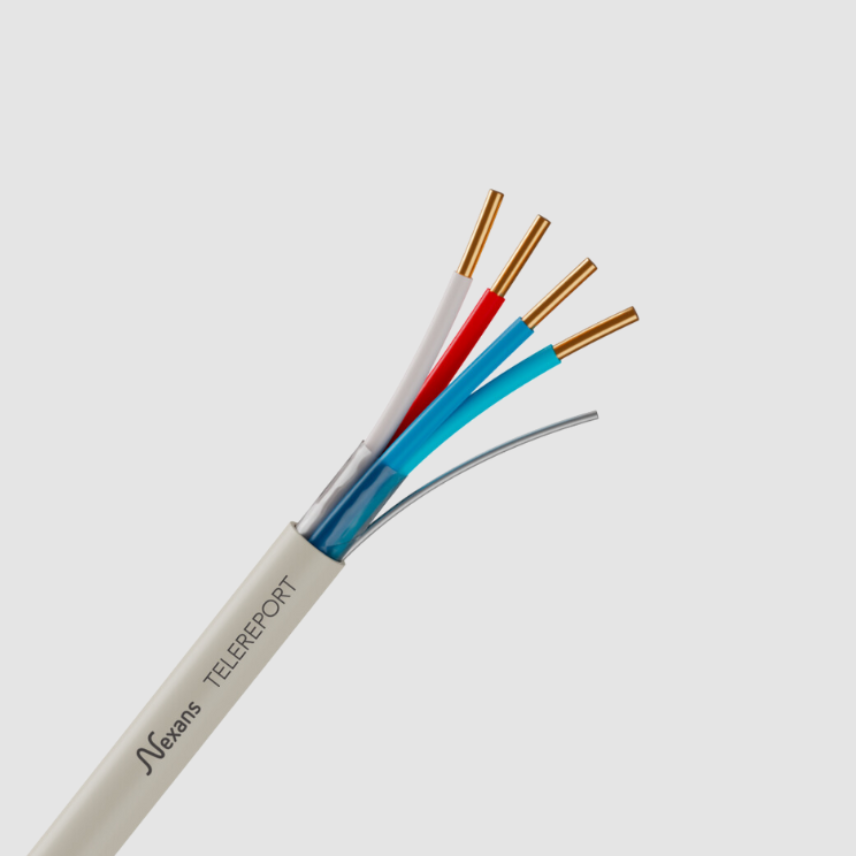

Nexans TELEREPORT non armé 2 paires 6/10

Applications

These cables are used for automatic data transfer from EDF cut out through remote read. In accordance with EDF specification 48 37 300.

Design

Conductor:

Solid bare copper, diameter 0.6 mm

Insutation:

Polyvinyl chloryde (PVC)

Tape:

Polyester

Collective screen:

Tinned copper drain wire

Aluminium/polyester tape

Outer sheath:

Polyvinyl chloryde (PVC) Colour : Ivory UV resistant

Core identification

1st pair: light blue - white
2nd pair: red - dark blue

Marking

TELEREPORT NFC 33-400 NEXANS 279 Manufacturing n° YYYY

Technical characteristics

Loop resistance at 20°C : 120 < R(Ohm.km) < 133,2
Insulation resistance under 400 V direct current value after 1 min of operation > 1000 MOhm.
Dielectrical strength between conductors for 1 min : 1500 V
Capacitance at 50 kHz : 80 < C (nF/km) < 130
Typical impedance at 50 kHz : 75 < Zc(Ohm) < 115
Ambiant temperature : -15°C to +45°C
