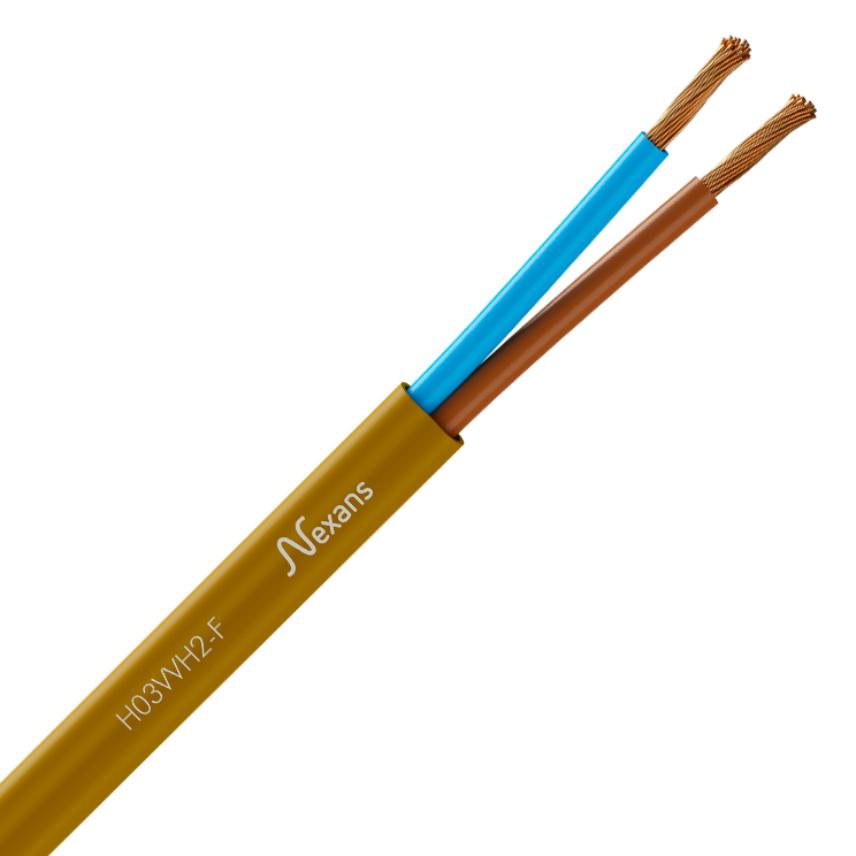

H03VVH2-F 2x0.75 Old Gold Coil of 25 m (In box of 20 coils)

Description

Description

Standards

  • International
    HD 21.5; IEC 60227-1; IEC 60298
  • National
    NF C32-013; NF C32-201/5

Application

Nexans H03VVH2-F cables are used for light portable domestic appliances, but are not suitable for heating and cooking appliances.

Installation

Open air.

Core colours

2 cores = Brown+ Light blue

Marking

S.Y + USE 'harH03VVH2-F N° Usine

For more information on Bipolar extension cords 6 A, see Related information on the bottom of the page.

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor flexibility
Flexible class 5
Conductor material
Bare copper
Conductor shape
Oblong shape
Insulation
PVC
Lead free
Yes
Outer sheath
PVC inner filling sheath
Sheath colour
Old gold

Dimensional characteristics

Dimensional characteristics

Approximate weight
32 kg/km
Conductor cross-section
0.75 mm²
External dimensions
3,80 (+/-0,3mm) + 5,70 (+/-0,5mm)
Number of cores
2

Electrical characteristics

Electrical characteristics

Rated Voltage Uo/U (Um)
300 / 300 V
Permissible current rating in open air
6 A

Mechanical characteristics

Mechanical characteristics

Mechanical resistance to impacts
Low
Cable flexibility
Flexible

Usage characteristics

Usage characteristics

Max. conductor temperature in service
- °C
Short-circuit max. conductor temperature
150 °C
Operating temperature, range
-5 ... 60 °C
Flame retardant
C2, NF C 32-070
Weather resistance
Good
Chemical resistance
Accidental
Water proof
Accidental
Minimum static operating bending radius
11.7 mm
Packaging
Box of 20 coils of 25 m
