Nexans FR-N1X6G3 Protect
Nexans FR-N1X6G3 Protect

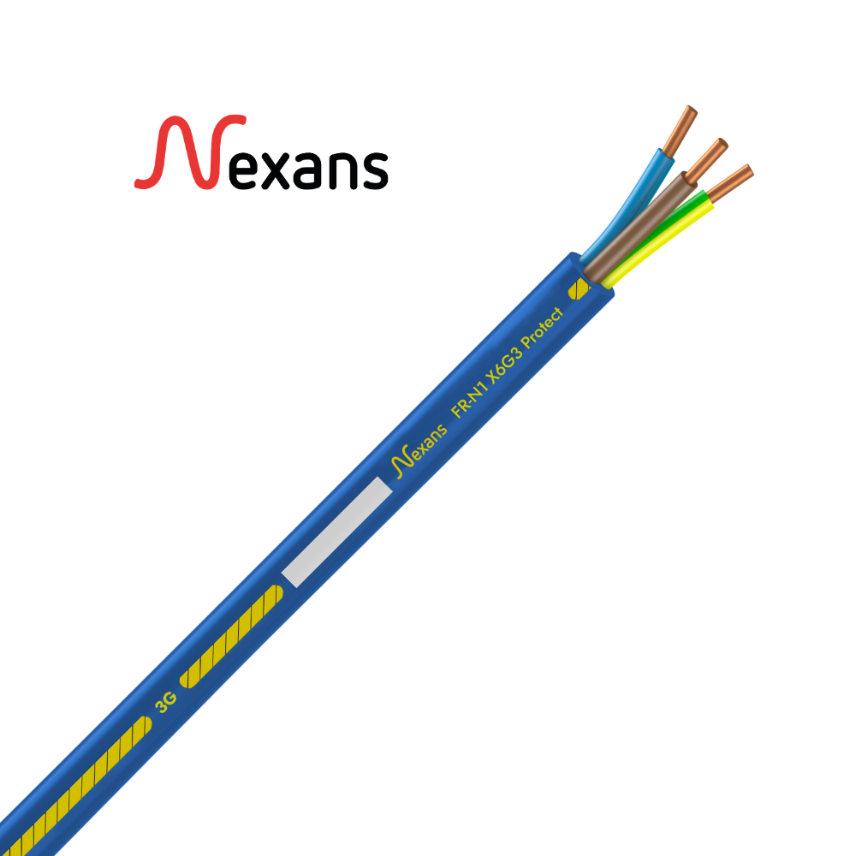

Nexans FR-N1X6G3 Protect is a rigid and semi-rigid cable with a copper core that meets the requirements of the decree of 17 May 2024 concerning ERP and IGH, and complies with standard XPC 32-325.
Read moreLTC by Nexans FRN1X6G3 2X1,5 *N* C100 NEW
Nexans ref. 10287560 - Country ref. 01287560
- Packaging: Coil (100m)
LTC by Nexans FRN1X6G3 2X1,5 *N* D500 NEW
Nexans ref. 10287561 - Country ref. 01287561
- Packaging: Drum (500m)
LTC by Nexans FRN1X6G3 2X10 *N* NEW
Nexans ref. 10287576 - Country ref. 01287576
- Packaging: Cut to length (m)
LTC by Nexans FRN1X6G3 2X10 *N* D500 NEW
Nexans ref. 10287575 - Country ref. 01287575
- Packaging: Drum
LTC by Nexans FRN1X6G3 2X16 *N* D3000 NEW
Nexans ref. 10287578 - Country ref. 01287578
- Packaging: Drum (3000m)
LTC by Nexans FRN1X6G3 2X16 *N* D500 NEW
Nexans ref. 10287577 - Country ref. 01287577
- Packaging: Drum (500m)
LTC by Nexans FRN1X6G3 2X4 *N* NEW
Nexans ref. 10287636 - Country ref. 01287636
- Packaging: Cut to length (m)
LTC by Nexans FRN1X6G3 2X6 *N* NEW
Nexans ref. 10287574 - Country ref. 01287574
- Packaging: Cut to length (m)
LTC by Nexans FRN1X6G3 2X6 *N* D500 NEW
Nexans ref. 10287564 - Country ref. 01287564
- Packaging: Drum (500m)
LTC by Nexans FRN1X6G3 3G1,5 *N* C100 NEW
Nexans ref. 10287579 - Country ref. 01287579
- Packaging: Coil (100m)
LTC by Nexans FRN1X6G3 3G1,5 *N* D4500 NEW
Nexans ref. 10287582 - Country ref. 01287582
- Packaging: Drum (4500m)
LTC by Nexans FRN1X6G3 3G1,5 *N* D500 NEW
Nexans ref. 10287580 - Country ref. 01287580
- Packaging: Drum (500m)
LTC by Nexans FRN1X6G3 3G10 *N* D3000 NEW
Nexans ref. 10287590 - Country ref. 01287590
- Packaging: Drum (3000m)
LTC by Nexans FRN1X6G3 3G10 *N* D500 NEW
Nexans ref. 10287589 - Country ref. 01287589
- Packaging: Drum (500m)
LTC by Nexans FRN1X6G3 3G16 *N* NEW
Nexans ref. 10287591 - Country ref. 01287591
- Packaging: Cut to length (m)
LTC by Nexans FRN1X6G3 3G2,5 *N* C100 NEW
Nexans ref. 10287583 - Country ref. 01287583
- Packaging: Coil (100m)
LTC by Nexans FRN1X6G3 3G2,5 *N* D3500 NEW
Nexans ref. 10287586 - Country ref. 01287586
- Packaging: Drum (3500m)
LTC by Nexans FRN1X6G3 3G2,5 *N* D500 NEW
Nexans ref. 10287584 - Country ref. 01287584
- Packaging: Drum (500m)
LTC by Nexans FRN1X6G3 3G4 *N* NEW
Nexans ref. 10287587 - Country ref. 01287587
- Packaging: Cut to length (m)
LTC by Nexans FRN1X6G3 3G4 *N* D500 NEW
Nexans ref. 10287588 - Country ref. 01287588
- Packaging: Drum (500m)
LTC by Nexans FRN1X6G3 3G6 *N* C100 NEW
Nexans ref. 10287592 - Country ref. 01287592
- Packaging: Coil (100m)
LTC by Nexans FRN1X6G3 3G6 *N* D4000 NEW
Nexans ref. 10287637 - Country ref. 01287637
- Packaging: Drum (4000m)
LTC by Nexans FRN1X6G3 3G6 *N* D500 NEW
Nexans ref. 10287593 - Country ref. 01287593
- Packaging: Drum (500m)
LTC by Nexans FRN1X6G3 4G1,5 *N* C100 NEW
Nexans ref. 10287597 - Country ref. 01287597
- Packaging: Coil (100m)
LTC by Nexans FRN1X6G3 4G1,5 *N* D4000 NEW
Nexans ref. 10287600 - Country ref. 01287600
- Packaging: Drum (4000m)
LTC by Nexans FRN1X6G3 4G1,5 *N* D500 NEW
Nexans ref. 10287599 - Country ref. 01287599
- Packaging: Drum (500m)
LTC by Nexans FRN1X6G3 4G10 *N* D2000 NEW
Nexans ref. 10287603 - Country ref. 01287603
- Packaging: Drum (2000m)
LTC by Nexans FRN1X6G3 4G10 *N* D500 NEW
Nexans ref. 10287604 - Country ref. 01287604
- Packaging: Drum (500m)
LTC by Nexans FRN1X6G3 4G16 *N* NEW
Nexans ref. 10287605 - Country ref. 01287605
- Packaging: Cut to length (m)
LTC by Nexans FRN1X6G3 4G2,5 *N* NEW
Nexans ref. 10287601 - Country ref. 01287601
- Packaging: Cut to length (m)
LTC by Nexans FRN1X6G3 4G6 *N* NEW
Nexans ref. 10287602 - Country ref. 01287602
- Packaging: Cut to length (m)
LTC by Nexans FRN1X6G3 5G1,5 *N* C100 NEW
Nexans ref. 10287606 - Country ref. 01287606
- Packaging: Coil (100m)
LTC by Nexans FRN1X6G3 5G1,5 *N* D3000 NEW
Nexans ref. 10287609 - Country ref. 01287609
- Packaging: Drum (3000m)
LTC by Nexans FRN1X6G3 5G1,5 *N* D500 NEW
Nexans ref. 10287607 - Country ref. 01287607
- Packaging: Drum (500m)
LTC by Nexans FRN1X6G3 5G10 *N* D1500 NEW
Nexans ref. 10287622 - Country ref. 01287622
- Packaging: Drum (1500m)
LTC by Nexans FRN1X6G3 5G10 *N* D500 NEW
Nexans ref. 10287621 - Country ref. 01287621
- Packaging: Drum (500m)
LTC by Nexans FRN1X6G3 5G16 *N* NEW
Nexans ref. 10287626 - Country ref. 01287626
- Packaging: Cut to length (m)
LTC by Nexans FRN1X6G3 5G16 *N* D1500 NEW
Nexans ref. 10287625 - Country ref. 01287625
- Packaging: Drum (1500m)
LTC by Nexans FRN1X6G3 5G16 *N* D500 NEW
Nexans ref. 10287623 - Country ref. 01287623
- Packaging: Drum (500m)
LTC by Nexans FRN1X6G3 5G2,5 *N* C100 NEW
Nexans ref. 10287610 - Country ref. 01287610
- Packaging: Coil (100m)
LTC by Nexans FRN1X6G3 5G2,5 *N* D2500 NEW
Nexans ref. 10287613 - Country ref. 01287613
- Packaging: Drum (2500m)
LTC by Nexans FRN1X6G3 5G2,5 *N* D500 NEW
Nexans ref. 10287611 - Country ref. 01287611
- Packaging: Drum (500m)
LTC by Nexans FRN1X6G3 5G4 *N* NEW
Nexans ref. 10287615 - Country ref. 01287615
- Packaging: Cut to length (m)
LTC by Nexans FRN1X6G3 5G4 *N* D500 NEW
Nexans ref. 10287614 - Country ref. 01287614
- Packaging: Drum (500m)
LTC by Nexans FRN1X6G3 5G6 *N* NEW
Nexans ref. 10287620 - Country ref. 01287620
- Packaging: Cut to length (m)
LTC by Nexans FRN1X6G3 5G6 *N* C50 NEW
Nexans ref. 10287616 - Country ref. 01287616
- Packaging: Coil (100m)
LTC by Nexans FRN1X6G3 5G6 *N* D3000 NEW
Nexans ref. 10287619 - Country ref. 01287619
- Packaging: Drum (3000m)
LTC by Nexans FRN1X6G3 5G6 *N* D500 NEW
Nexans ref. 10287617 - Country ref. 01287617
- Packaging: Drum (500m)
Nexans FRN1X6G3 Protect 3G1,5 C100
Nexans ref. 10287702 - Country ref. 01287702
- Packaging: Coil (100m)
Nexans FRN1X6G3 Protect 3G1,5 C50
Nexans ref. 10287701 - Country ref. 01287701
- Packaging: Coil (50m)
Nexans FRN1X6G3 Protect 3G1,5 D500
Nexans ref. 10287703 - Country ref. 01287703
- Packaging: Drum (500m)
Nexans FRN1X6G3 Protect 3G2,5 C100
Nexans ref. 10287705 - Country ref. 01287705
- Packaging: Coil (100m)
Nexans FRN1X6G3 Protect 3G2,5 C50
Nexans ref. 10287704 - Country ref. 01287704
- Packaging: Coil (50m)
Nexans FRN1X6G3 Protect 3G2,5 D500
Nexans ref. 10287693 - Country ref. 01287693
- Packaging: Drum (500m)
Nexans FRN1X6G3 Protect 4G1,5 C100
Nexans ref. 10287716 - Country ref. 01287716
- Packaging: Coil (100m)
Nexans FRN1X6G3 Protect 4G1,5 D500
Nexans ref. 10287715 - Country ref. 01287715
- Packaging: Drum (500m)
Nexans FRN1X6G3 Protect 5G1,5 C100
Nexans ref. 10287718 - Country ref. 01287718
- Packaging: Coil (100m)
Nexans FRN1X6G3 Protect 5G1,5 D500
Nexans ref. 10287719 - Country ref. 01287719
- Packaging: Drum (500m)
Nexans FRN1X6G3 Protect 5G2,5 C100
Nexans ref. 10287717 - Country ref. 01287717
- Packaging: Coil (100m)
Nexans FRN1X6G3 Protect 5G2,5 D500
Nexans ref. 10287720 - Country ref. 01287720
- Packaging: Drum (500m)
Nexans FRN1X6G3 Protect MOBIWAY 3G1,5 D250 NEW
Nexans ref. 10287581 - Country ref. 01287581
- Packaging: Drum (250m)
Nexans FRN1X6G3 Protect MOBIWAY 3G2,5 D200 NEW
Nexans ref. 10287585 - Country ref. 01287585
- Packaging: Drum (200m)
Nexans FRN1X6G3 Protect MOBIWAY 3G6 D100 NEW
Nexans ref. 10287594 - Country ref. 01287594
- Packaging: Drum (100m)
Nexans FRN1X6G3 Protect MOBIWAY 4G1,5 D200 NEW
Nexans ref. 10287598 - Country ref. 01287598
- Packaging: Drum (200m)
Nexans FRN1X6G3 Protect MOBIWAY 5G1,5 D200 NEW
Nexans ref. 10287608 - Country ref. 01287608
- Packaging: Drum (200m)
Nexans FRN1X6G3 Protect MOBIWAY 5G2,5 D150 NEW
Nexans ref. 10287612 - Country ref. 01287612
- Packaging: Drum (150m)
Description
Description
Standards
-
Product2014/68/EU; IEC 60228; IEC 60502-1
Advantages
Nexans FR-N1X6G3 Protect cables, available in cross-sections from 1.5 to 240 mm² and from 1 to 5 conductors, have been designed to be non-flammable, halogen-free and give off little smoke in the event of a fire. The gases emitted are non-corrosive and very low in toxicity. Thanks to their excellent fire behaviour (Cca-s2,d2,a2), they are particularly suitable for public buildings (ERP) and high-rise buildings (IGH). They can also be used in establishments receiving workers (ERT) or in housing.
Nexans has innovated in the design of this cable to offer an installation experience comparable to the Nexans U1000-R2V Distingo cable, in terms of diameter, sheathability and flexibility.
Nexans FR-N1X6G3 cables contain 10% recycled copper, which reduces their carbon footprint. Nexans makes available all the environmental data of its products (PEP Ecopassport®).
The advantages of this range are :
Very good fire resistance, non-fire propagating and halogen-free.
- 1.5 and 2.5mm² :
- Experience close to R2V (sheathability, flexibility, diameter)
- Strip indicating the cross-section
- Indication of the number of conductors
- White rectangle to indicate destination
- Available in Mobiway to save time
- Made in France
- 10% recycled copper
- 4 to 16mm² cross-section
- Edging to indicate cross-section
- Available in Mobiway to save time
- Made in France
- 10% recycled copper
- >25mm² copper
- 10% recycled copper
- Made in Belgium
Installation
Nexans FR-N1X6G3 cables can be fixed on cable trays, within conduits or fixed to walls, installed outside. They also can be buried directly with extra mechanical protection.
They can be installed outdoors without protection (UV resistance, AN3 according to NF C15-100).
When the cables are pulled, all the conductors contribute equally to the force. The maximum must never exceed 5 daN/mm² of overall cross-section.
Permissible current and voltage drop are given
a)in free air, sheltered from sun, on cable tray or bracket, on cable ladder, and spaced from the wall, temperature = 30°C.
b) buried with thermal resistivity of the ground 1Km/W, laying depth : 600 mm, temperature = 20°C.
If conditions are differents, apply correction factors from NF C 15-100 standard or equivalent national standard
Voltage drop
calculated with cos PHI = 0.8
CONSTRUCTION
Conductor: Circular copper
Insulation: XLPE
Outer sheath: Blue halogen-free blend
Marking
N (x or G) S mm² FR-N1X6G3 NF - USE N° Factory S.Y + without lead
- N = number of cores
- S = cross-section in mm²
- G = with Green/Yellow
- x = without Green/Yellow
Construction
Gamme
Available in Mobiway Mob drum
