NEXANS Cca - FR-N1X1G1-AR 0,6/1kV IRVE
NEXANS Cca - FR-N1X1G1-AR 0,6/1kV IRVE
The NEXANS EV NETWORK (Electric Vehicle) solution has been specially designed to supply Electric Vehicle Charging Infrastructures (EVCI) in covered car parks. Its design allows a quick connection of charging stations through branch cables.
Read moreFR-N1 X1G1-AR 0,6/1kV 1x25
Nexans ref. 10287039
- Packaging: m
- With smaller neutral conductor: No
- Phase Conductor Cross Section: 25 mm²
- Number of phases: 1
- Phase Conductor Diameter: 6 mm
- Average insulation thickness: 0.9 mm
- Average sheath thickness: 1.4 mm
- Nominal overall diameter of each phase cable: 11.6 mm
- Neutral conductor section (when smaller): - mm²
- Neutral Conductor Diameter: - mm
- Nominal overall diameter: - mm
- Approximate weight: 185 kg/km
- Insulation thickness of neutral conductor: - mm
- Sheath thickness of the neutral conductor: - mm
FR-N1 X1G1-AR 0,6/1kV 1x50
Nexans ref. 10287040
- Packaging: m
- With smaller neutral conductor: No
- Phase Conductor Cross Section: 50 mm²
- Number of phases: 1
- Phase Conductor Diameter: 8.2 mm
- Average insulation thickness: 1.0 mm
- Average sheath thickness: 1.4 mm
- Nominal overall diameter of each phase cable: 13.4 mm
- Neutral conductor section (when smaller): - mm²
- Neutral Conductor Diameter: - mm
- Nominal overall diameter: - mm
- Approximate weight: 260 kg/km
- Insulation thickness of neutral conductor: - mm
- Sheath thickness of the neutral conductor: - mm
FR-N1 X1G1-AR 0,6/1kV 2x1x25
Nexans ref. 10286654
- Packaging: m
- With smaller neutral conductor: No
- Phase Conductor Cross Section: 25 mm²
- Number of phases: 1
- Phase Conductor Diameter: 6 mm
- Average insulation thickness: 0.9 mm
- Average sheath thickness: 1.4 mm
- Nominal overall diameter of each phase cable: 11.6 mm
- Neutral conductor section (when smaller): 25 mm²
- Neutral Conductor Diameter: 6 mm
- Nominal overall diameter: 24.4 mm
- Approximate weight: 370 kg/km
- Insulation thickness of neutral conductor: 0.90 mm
- Sheath thickness of the neutral conductor: 1.40 mm
FR-N1 X1G1-AR 0,6/1kV 3x1x150+70N
Nexans ref. 10286659
- Packaging: m
- With smaller neutral conductor: Yes
- Phase Conductor Cross Section: 150 mm²
- Number of phases: 3
- Phase Conductor Diameter: 14.3 mm
- Average insulation thickness: 1.4 mm
- Average sheath thickness: 1.6 mm
- Nominal overall diameter of each phase cable: 21 mm
- Neutral conductor section (when smaller): 70 mm²
- Neutral Conductor Diameter: 9.8 mm
- Nominal overall diameter: 49.7 mm
- Approximate weight: 2240 kg/km
- Insulation thickness of neutral conductor: 1.10 mm
- Sheath thickness of the neutral conductor: 1.40 mm
FR-N1 X1G1-AR 0,6/1kV 3x1x240+95N
Nexans ref. 10286660
- Packaging: m
- With smaller neutral conductor: Yes
- Phase Conductor Cross Section: 240 mm²
- Number of phases: 3
- Phase Conductor Diameter: 18.5 mm
- Average insulation thickness: 1.7 mm
- Average sheath thickness: 1.7 mm
- Nominal overall diameter of each phase cable: 26 mm
- Neutral conductor section (when smaller): 95 mm²
- Neutral Conductor Diameter: 11.5 mm
- Nominal overall diameter: 60.4 mm
- Approximate weight: 3370 kg/km
- Insulation thickness of neutral conductor: 1.10 mm
- Sheath thickness of the neutral conductor: 1.50 mm
FR-N1 X1G1-AR 0,6/1kV 3x1x70+50N
Nexans ref. 10286657
- Packaging: m
- With smaller neutral conductor: Yes
- Phase Conductor Cross Section: 70 mm²
- Number of phases: 3
- Phase Conductor Diameter: 9.8 mm
- Average insulation thickness: 1.1 mm
- Average sheath thickness: 1.4 mm
- Nominal overall diameter of each phase cable: 15.4 mm
- Neutral conductor section (when smaller): 50 mm²
- Neutral Conductor Diameter: 8.2 mm
- Nominal overall diameter: 37.8 mm
- Approximate weight: 1300 kg/km
- Insulation thickness of neutral conductor: 1.00 mm
- Sheath thickness of the neutral conductor: 1.40 mm
FR-N1 X1G1-AR 0,6/1kV 3x1x95+50N
Nexans ref. 10286658
- Packaging: m
- With smaller neutral conductor: Yes
- Phase Conductor Cross Section: 95 mm²
- Number of phases: 3
- Phase Conductor Diameter: 11.5 mm
- Average insulation thickness: 1.1 mm
- Average sheath thickness: 1.5 mm
- Nominal overall diameter of each phase cable: 17.3 mm
- Neutral conductor section (when smaller): 50 mm²
- Neutral Conductor Diameter: 8.2 mm
- Nominal overall diameter: 41.4 mm
- Approximate weight: 1600 kg/km
- Insulation thickness of neutral conductor: 1.00 mm
- Sheath thickness of the neutral conductor: 1.40 mm
FR-N1 X1G1-AR 0,6/1kV 4x1x25
Nexans ref. 10286655
- Packaging: m
- With smaller neutral conductor: No
- Phase Conductor Cross Section: 25 mm²
- Number of phases: 3
- Phase Conductor Diameter: 6 mm
- Average insulation thickness: 0.9 mm
- Average sheath thickness: 1.4 mm
- Nominal overall diameter of each phase cable: 11.6 mm
- Neutral conductor section (when smaller): 25 mm²
- Neutral Conductor Diameter: 6 mm
- Nominal overall diameter: 29.4 mm
- Approximate weight: 740 kg/km
- Insulation thickness of neutral conductor: 0.90 mm
- Sheath thickness of the neutral conductor: 1.40 mm
FR-N1 X1G1-AR 0,6/1kV 4x1x50
Nexans ref. 10286656
- Packaging: m
- With smaller neutral conductor: No
- Phase Conductor Cross Section: 50 mm²
- Number of phases: 3
- Phase Conductor Diameter: 8.2 mm
- Average insulation thickness: 1.0 mm
- Average sheath thickness: 1.4 mm
- Nominal overall diameter of each phase cable: 13.4 mm
- Neutral conductor section (when smaller): 50 mm²
- Neutral Conductor Diameter: 8.2 mm
- Nominal overall diameter: 34.0 mm
- Approximate weight: 1040 kg/km
- Insulation thickness of neutral conductor: 1.00 mm
- Sheath thickness of the neutral conductor: 1.40 mm
FR-N1 X1G1-AR 0,6/1kV 4x1x95
Nexans ref. 10287055
- Packaging: m
- With smaller neutral conductor: No
- Phase Conductor Cross Section: 95 mm²
- Number of phases: 3
- Phase Conductor Diameter: 11.5 mm
- Average insulation thickness: 1.1 mm
- Average sheath thickness: 1.5 mm
- Nominal overall diameter of each phase cable: 17.3 mm
- Neutral conductor section (when smaller): 95 mm²
- Neutral Conductor Diameter: 11.5 mm
- Nominal overall diameter: 43.9 mm
- Approximate weight: 1790 kg/km
- Insulation thickness of neutral conductor: 1.10 mm
- Sheath thickness of the neutral conductor: 1.50 mm
Description
Description
Standards
-
NationalNF C32-323
Application
The NEXANS EV-NETWORK solution provides several advantages compared to the individual cabling of each charging station:
- modularity and scalability of the installation,
- space-saving in the switchboard, in cable trays, core drilling
- cost-effective, with reduced cable length and easiest maintenance
Cables comply with the requirements of the Construction Products Regulation “CPR (EU) n° 305/2011” with an improved fire performance class: Cca - s1, d1, a1. They are fire retardant and low fire hazard cables, with low smoke and reduced emissions of toxic and corrosive gasses (LS0H).
Construction
The NEXANS EV-NETWORK solution is made of:
- A main BUS cable (three-phase twisted + neutral) laid in a cable tray or fixed to the walls for distribution in streets or near the terminals
- Branch cables (one/three-phase twisted + neutral) to connect, simultaneously or later, the charging stations to the BUS cable via dedicated connectors.
- Compact stranded aluminium conductors - class 2 according to IEC 60228
- Insulation: extruded XLPE compound - type X1 color: black
- Outer sheath: low fire hazard compound (LSZH) - type G1 color: black

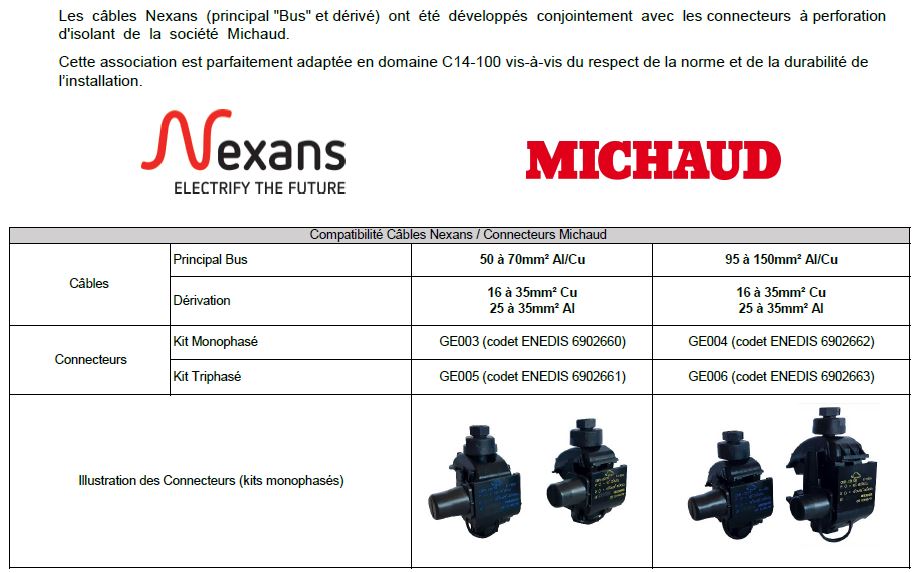

Solution complète pour IRVE
Les câbles Nexans (principal "Bus" et dérivé) ont été développés conjointement avec les connecteurs à perforation d'isolant de la société Michaud.
Cette association est parfaitement adaptée en domaine C14-100 vis-à-vis du respect de la norme et de la durabilité de l’installation.
Warning
The range presented is likely to satisfy the majority of use cases in the areas covered by IRVE; it will be up to the user to select the products according to the specificities of said fields of application (NF C14-100 and NF C15-100)
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor material
Aluminum
Conductor shape
Round, stranded and compacted
Conductor flexibility
Class 2 acc. to IEC 60228
Neutral Type
Aluminium - Class 2 acc. to IEC 60228
Insulation
Cross-linked compound
Insulation colour
Black
Outer sheath
Low smoke, zero halogen thermoplastic compound
Sheath colour
Black
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U (Um)
0.6/ 1 (1.2) kV
Resources
Resources
Documentation
Dimensional data
pdf — 117.2 kB
Leaflet IRVE
pdf — 2.8 MB
Selling & delivery Information
Marking
- phase 1 NEXANS B25064 IRVE Cca s1 d1 a1 FR-N1 X1XG1-AR 1xS NF USE < Batch > < Year >
- phase 2 L2 NEXANS B25064 IRVE Cca s1 d1 a1 FR-N1 X1XG1-AR 1xS NF USE < Batch > < Year >
- phase 3 L3 NEXANS B25064 IRVE Cca s1 d1 a1 FR-N1 X1XG1-AR 1xS NF USE < Batch >< Year >
- neutral NEXANS B25064 IRVE Cca s1 d1 a1 FR-N1 X1XG1-AR 1xS NF USE < Batch > < Year >
