Study 133510

Description

Description

Standards

  • International
    448-010-3-10; Nexans specification

Characteristics
Very flexible cable with an extremely good mechanical behaviour.
Withstands miscellaneous sterilisation processes.

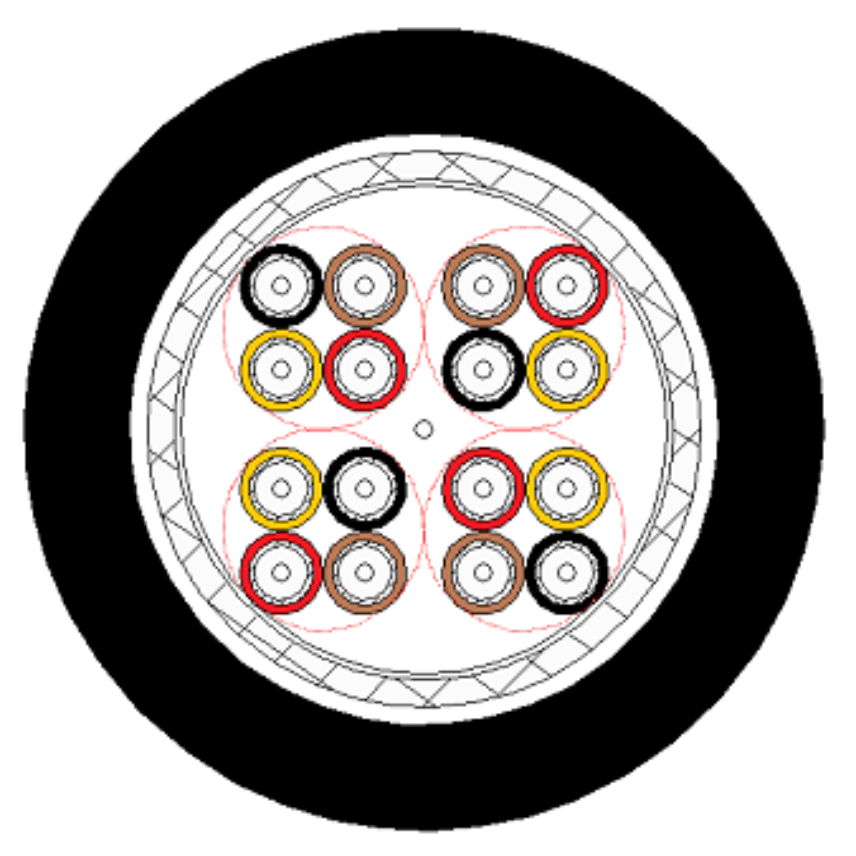

CONSTRUCTION

1- CORE (A)
AWG 38 solid silver plated copper conductor
Nominal diameter : 0.10 mm
FEP insulation
Diameter : 0.30 +/- 0.02 mm
AWG 48 silver plated copper helicoidal screen
Nominal diameter : 0.36 mm
FEP jacket
Diameter : 0.46 +/- 0.03 mm

2- CORE (B)
4 Cores (A) twisted.
Nominal diameter : 1.10 mm

ASSEMBLY
1 Kevlar strength member + 4 Cores (B) twisted
3- PTFE Tape
Nominal diameter : 2.72 mm

4- SHIELD
AWG 40 tin plated copper braid.
85% min coverage.
Nominal diameter : 3.04 mm

5- PTFE Tape
Nominal diameter : 3.24 mm

6- JACKET
Polyurethane
Nom. Diameter : 4.40 mm
Max. Diameter : 4.50 mm

Main Characteristics
Minimum bending radius : 5 x Overall diameter.

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Construction type
Shielded and sheathed
Conductor shape
Single wired
Conductor material
Silver coated copper
Insulation
FEP

Dimensional characteristics

Dimensional characteristics

Approximate weight
24 g/m
Outer Diameter
4.4 mm

Electrical characteristics

Electrical characteristics

Operating voltage
24 V

Mechanical characteristics

Mechanical characteristics

Cable flexibility
Flexible

Usage characteristics

Usage characteristics

Maximum operating temperature
85 °C
Minimum operating temperature
-30 °C
RoHS compliant
Yes
