Study 133606

Description

Description

Standards

  • International
    Nexans specification

1- CORE (A)
Core (Z)

AWG 32 stranded Silver plated copper conductor.
FEP insulation.
Diameter : 0.58 +/- 0.03 mm

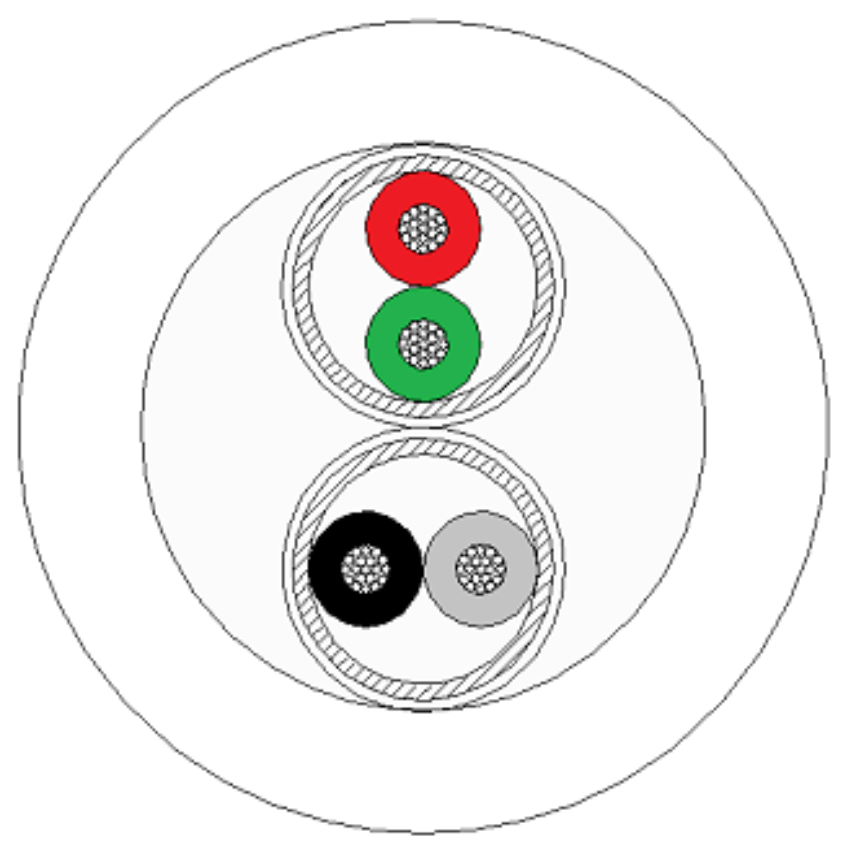

Assembly 2 Cores (Z)
Nominal diameter : 1.16 mm
AWG40 Tin plated copper spiral shield.
90% min. coverage
PTFE tape
Nominal diameter : 1.43 mm



Assembly

2 Cores (A) twisted.
Nominal diameter : 2.86 mm


2- JACKET
Medical PVC
Nom. Diameter : 4.00 mm
Max. Diameter : 4.20 mm





Main Characteristics
Minimum bending radius : 5 x Overall diameter.

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Construction type
Shielded and sheathed
Conductor shape
Multi stranded
Conductor material
Silver coated copper
Insulation
FEP

Dimensional characteristics

Dimensional characteristics

Approximate weight
17 g/m
Outer Diameter
4.1 mm

Electrical characteristics

Electrical characteristics

Operating voltage
250 V

Mechanical characteristics

Mechanical characteristics

Cable flexibility
Very flexible

Usage characteristics

Usage characteristics

Maximum operating temperature
60 °C
Minimum operating temperature
-20 °C
RoHS compliant
Yes
