J3UP-RF-RSM-24-50/240 Al/Cu

Description

Description

Standards

  • International
    HD 629.1 S2
  • National
    NF C33-001

Features & Benefits

The Nexans J3UP RF RSM  includes two reliable technologies :

  • RF: Cold Shrink
  • RSM: Bolted Connectors
    • multisection, from 50mm² to 240mm².
    • compatible with aluminium et copper cores.
    • compatible with synthetic insulated cables.
    • éequipped with shear-ff head bolts for a perfect torque.
    • no specific tool needed !

Application

The Nexans J3UP RF RSM has been designed to connect synthetic insulated cables complying with NF C 33-226, NF/UTE C 33-223 or NF C 33-220 standards, with cross sections from 50 to 240 mm², aluminium or copper cores.

Détails

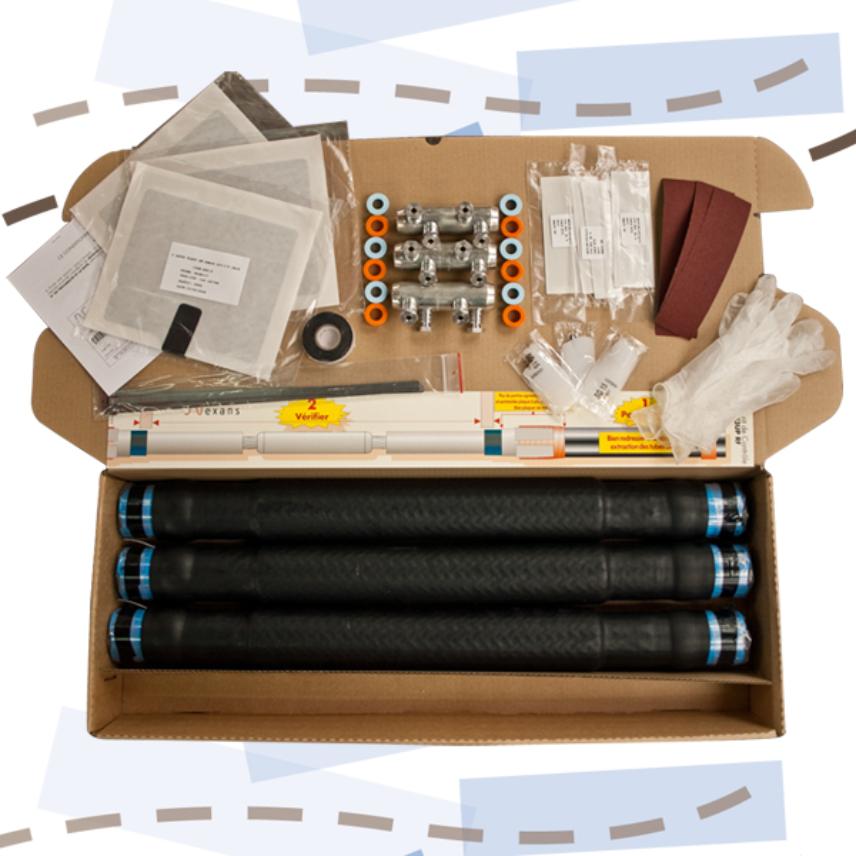

Each J3UP RF RSM kit is composed with:

- 3 cold shrinkable joints.

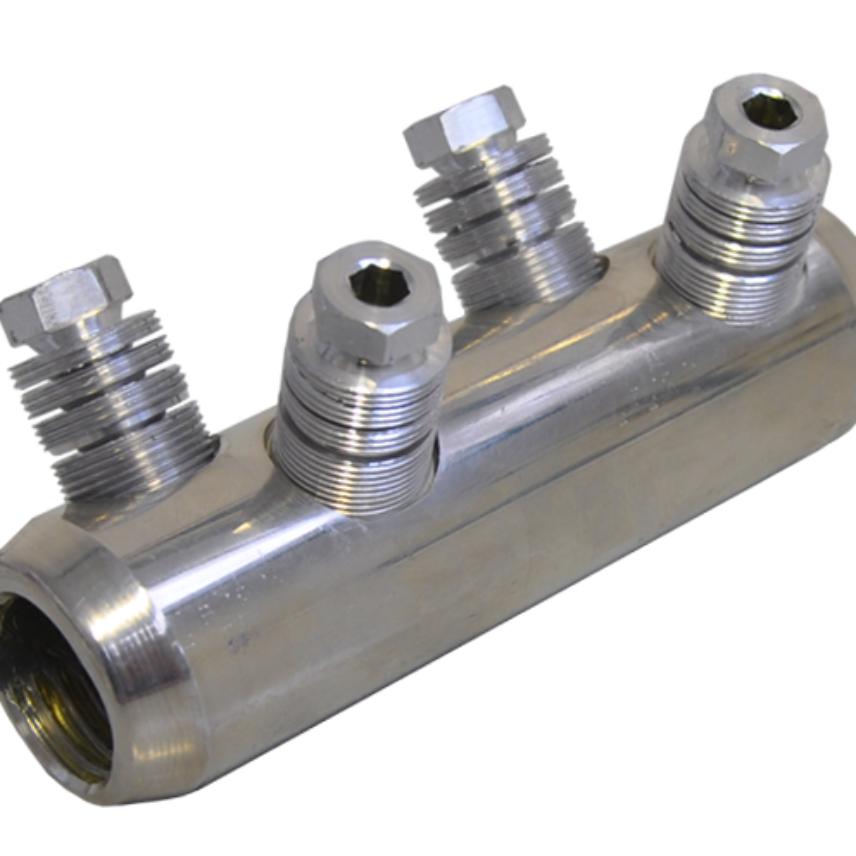

- 3 bolted connectors.

- 1 screen interconnection device.

Installation

This technology requires no heating source, nor filling or wrapping material. Operating is done by the removal of two tubes. Joints can be enpowered as soon as the installation is finished.

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor material
Copper or Aluminum
Technology
Cold shrink

Dimensional characteristics

Dimensional characteristics

Conductor cross-section, range
50 ... 240 mm²
Diameter over insulation, range
23 ... 42 mm
External diameter of the main cable, range
- mm
Maximum outer diameter
52.0 mm

Electrical characteristics

Electrical characteristics

Rated Voltage Uo/U (Um)
12 / 20 (24) kV

Usage characteristics

Usage characteristics

Ambient installation temperature, range
5 ... 40 °C
