J3UP RF 24-95/240
J3UP RF 24-95/240

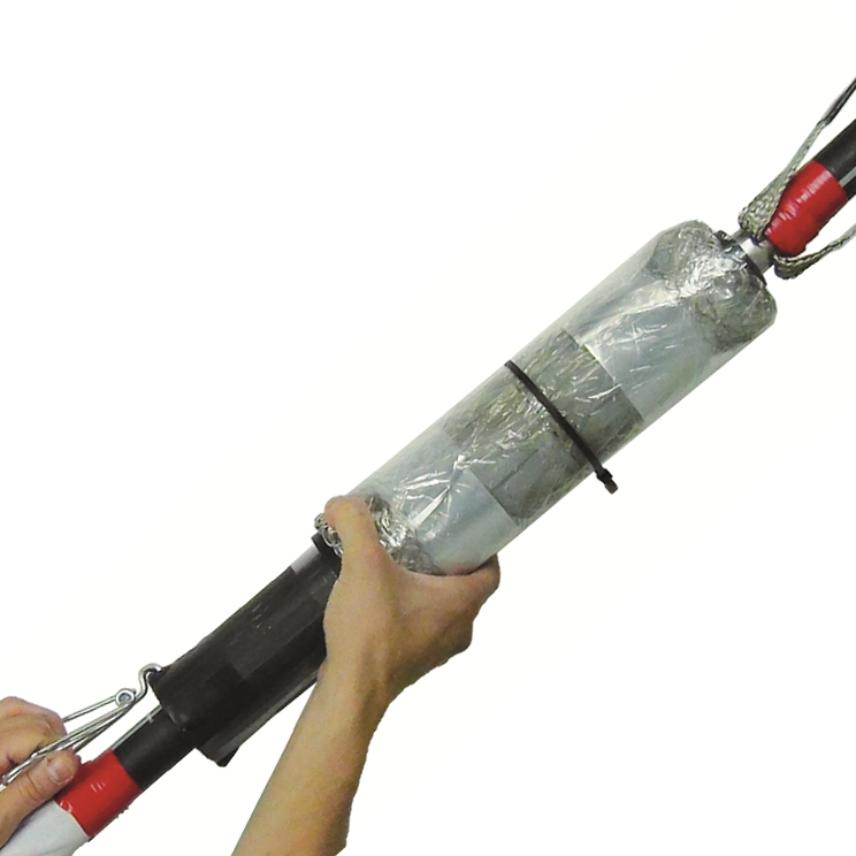

Permanent connection of single core synthetic MV cables.
Read more- Nexans ref. : 96727E
- Country ref. : Codet Enedis : 6790701
Description
Description
Standards
-
NationalC 33-050; NF C33-001
Use
Permanent connection of single core synthetic MV cables.

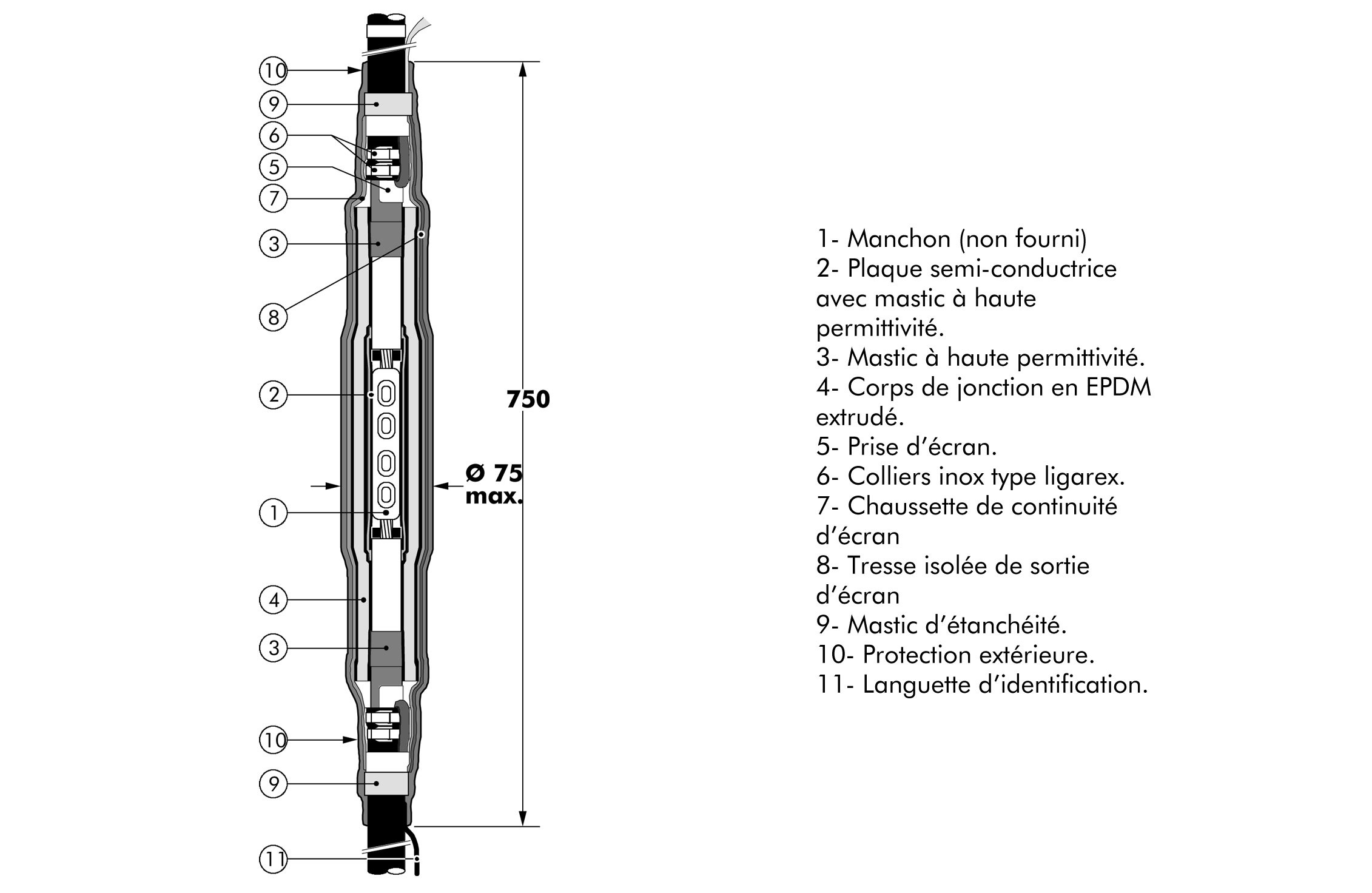

JUP/J3UP RF Details
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor material
Copper or Aluminum
Technology
Cold shrink
Dimensional characteristics
Dimensional characteristics
Conductor cross-section, range
50 ... 240 mm²
Diameter over insulation, range
23 ... 42 mm
External diameter of the main cable, range
- mm
Maximum outer diameter
52.0 mm
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U (Um)
12 / 20 (24) kV
Usage characteristics
Usage characteristics
Ambient installation temperature, range
5 ... 40 °C
