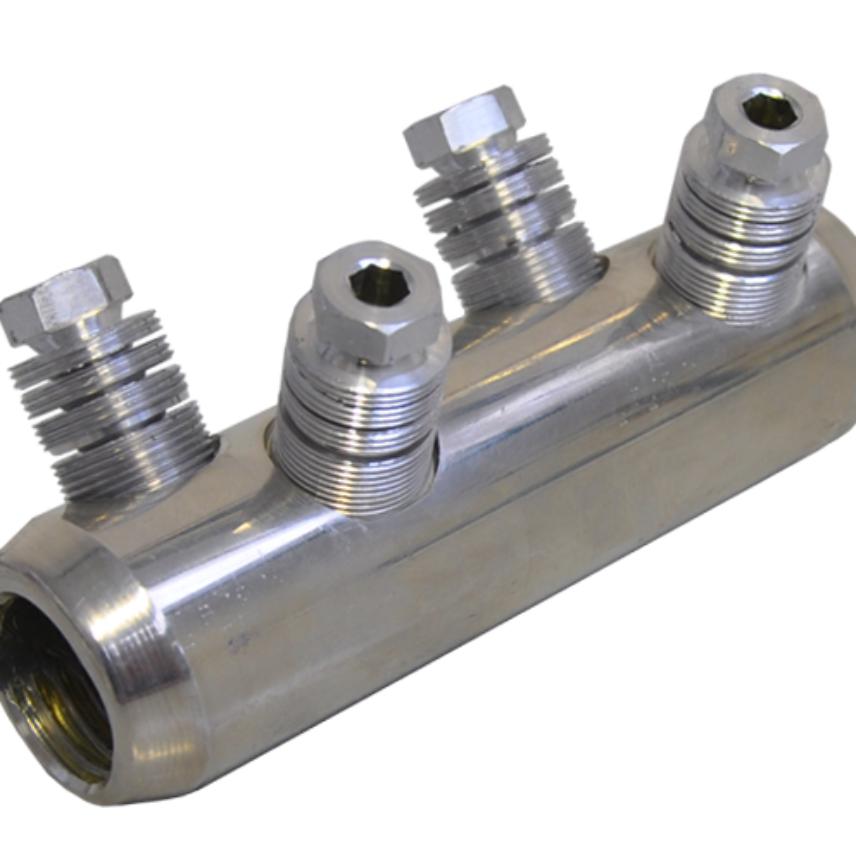

3 JUR3-RSM-24 50/240 Al/Cu
3 JUR3-RSM-24 50/240 Al/Cu
Medium voltage transition joints (synthetic to paper)
Up to 24kV
- Nexans ref. : 60518N
- Country ref. : Codet Enedis : 67 90 338
Description
Description
Standards
-
InternationalCENELEC HD 629.1; CENELEC HD 629.2
Medium voltage joints dedicated to permanent connection of:
- single or three core
- paper or synthetic insulated cables.
Available technologies:
- cold shrink
- injected resin (taped)
- heat shrink
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Technology
Wrapped
Conductor material
Copper or Aluminum
Dimensional characteristics
Dimensional characteristics
Conductor cross-section, range
50 ... 240 mm²
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U (Um)
12 / 20 (24) kV
Dielectric withstand voltage, 50Hz 1mn
55 kV
Impulse voltage
125 kV
Usage characteristics
Usage characteristics
Ambient installation temperature, range
5 ... 40 °C
