FR-N1XD9-AR_AD 2x16 +54.6 NF C33-209
NEW
Certifications and labels
Environmental data

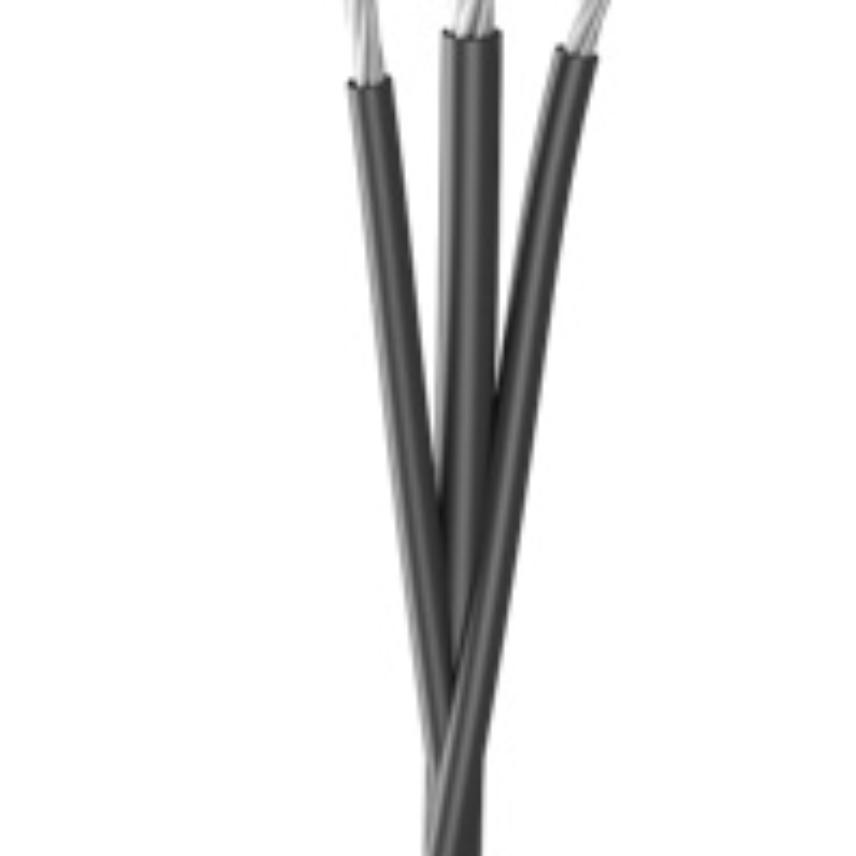

FR-N1XD9-AR_AD 2x16 +54.6 NF C33-209
The low-carbon power grid cables for distribution public networks (buried and aerial), 100% manufactured in France (plant Jeumont 59), guarantee a minimum 35% reduction in greenhouse gas emissions compared to standard cables.
This offer is built on the guaranteed use of low-carbon aluminium, as well as the use of renewable or decarbonised energies in manufacturing the cables.
Nexans provides all the environmental data for its products (PEP Ecopassport®).
Read more- Nexans ref. : 10057502
- Country ref. : 01068260
- EAN : 3427670002887
Description
Description
Standards
-
ProductNF C32-013; NF C33-209
-
InternationalIEC 60298
-
NationalNF C11-201
Application
ALUMINIUM NF C33-209 service bundled conductors are used for tributary networks of power buildings and their internal networks.
Characteristics
The bundled conductor cables have aluminum conductors, insulated with XLPE, they have good durability and thermal resistance.
Some other important cable characteristics are :
- Ultraviolet radiation resistance,
- Ozone resistance,
- High dielectric strength,
- Light and easy to handle.
Electrical characteristics
- Rated voltage : 0.6/1 kV
- Test voltage : 4 kV AC
- Resistance to voltage surges : 1.2/50µs with a positive or negative polarity and a peak value of 20 kV.
Installation
The NF C11-201 standard´s procedures determine the installation procedures for low voltage overhead lines.
These cables are NOT ALLOWED to be buried, even in conduits.
Low carbon offer
Low carbon at a glance
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Dimensional characteristics
Dimensional characteristics
Electrical characteristics
Electrical characteristics
Mechanical characteristics
Mechanical characteristics
Usage characteristics
Usage characteristics
Resources
Resources
Documentation
Selling & delivery Information
Marking
- Neutral :
211 NF C33-209 211 « manufacturing number », « metric marks » ink printed.
- Phase 1, 2, 3 :
the identification number is printed and embossed on insulation.
- Pilot wire n°1 : continuous white line is printed on the insulation
- Pilot wire n°2 : no marking
FR-N1XD9-AR_AD 2x16 +54.6 NF C33-209
Nexans ref. : 10057502
Country ref. : 01068260
EAN : 3427670002887
PEP : NXNS-00191-V02.01
This product is part of the low carbon range of Nexans : a selection of products ensuring the reduction of the carbon footprint and subject to rigourous ecodesign criteria.
Nexans Low Carbon Selection Criteria: minimum integration of 10% recycled copper or aluminum and/or 100% low-carbon aluminum sourcing.
Read more Read less- Amount of CO2 emitted Cradle to Gate phase (raw material collection and manufacturing), for the production of 1 km of cable.
- Percentage of recycled metal in the cable conductor.
- Percentage of recycled plastic contained in the insulation.
- 7.3t CO2 / t represents a 15% reduction to the European average for aluminium used (8.6t CO2 / t of aluminium - European Aluminium association 2018).
- The product reference value is calculated based on the final average value of aluminium. The reductions achieved are linked to the use of carbon-free energy sources.
- Manufactured in Jeumont
