  • Product
    Nexans specification

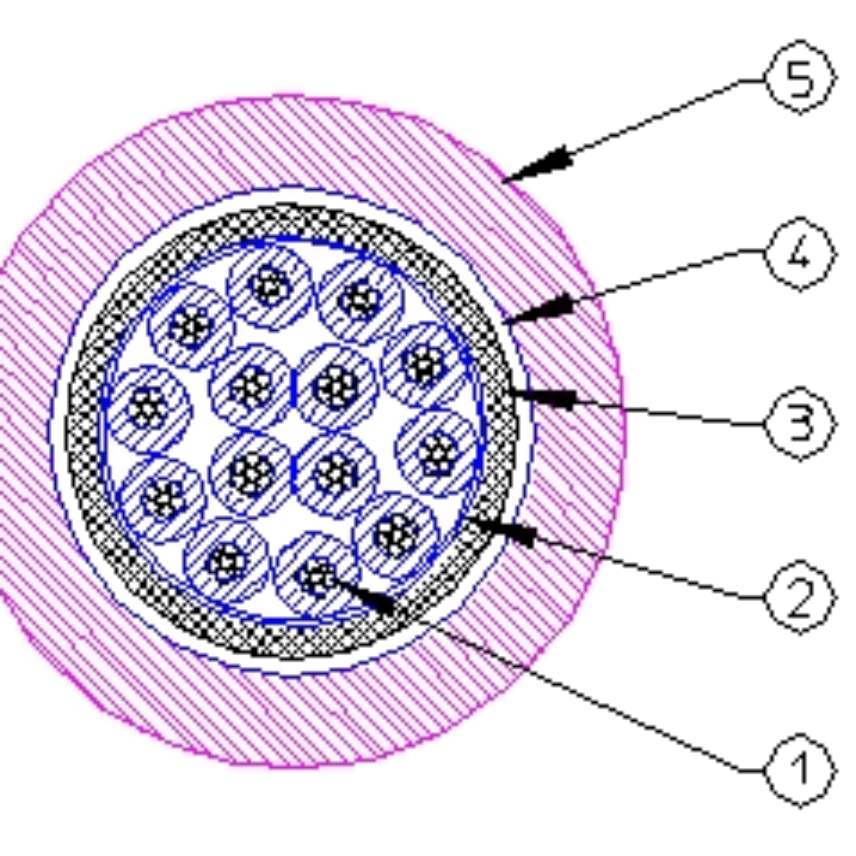

1- CORE (A)
AWG 32 Stranded silver plated conductor
FEP insulation
Diameter : 0.50 +/- 0.05 mm.

14 cores (A) twisted
Diameter : 2.2 mm

2- PTFE Tape
Diameter : 2.25 mm

3- SHIELD
AWG 40 Silver plated copper braid
85% coverage
Diameter : 2.6 mm

4- PTFE Tape
Diameter : 2.74 mm

5- MEDICAL PU
Diameter : 4.0 +/- 0.1 mm



Mechanical performances
Minimum bending radius : 5 x Overall diameter.

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor material
Silvered copper
Conductor shape
Multi stranded
Construction type
Shielded and sheathed
Insulation
Fluor polymer

Dimensional characteristics

Dimensional characteristics

Wire diameter
0.5 mm
Outer Diameter
4 mm
Maximum outer diameter
4.1 mm
Approximate weight
22.35 g/m

Electrical characteristics

Electrical characteristics

Operating voltage
24 V

Mechanical characteristics

Mechanical characteristics

Cable flexibility
Very flexible

Usage characteristics

Usage characteristics

Maximum operating temperature
90 °C
Minimum operating temperature
-40 °C
Mechanical Resistance
Good mechanical resistance
