3 CSE-250-A-RSM-24-50/95 Al/Cu (K200LR)

Description

Description

Standards

  • National
    C 33-051

Use

This range of separable connectors enables the connection of a synthetic insulated MV cable to a MV equipment such as transformers, motors, switchboards, switches.

The products that are presented are designed for NF C33-226 and NF C 33-220 cables. For any other cable standard, contact us.

Lexicon

  • CS = Separable connector
  • E = Square
  • D = Straight
  • M = Male

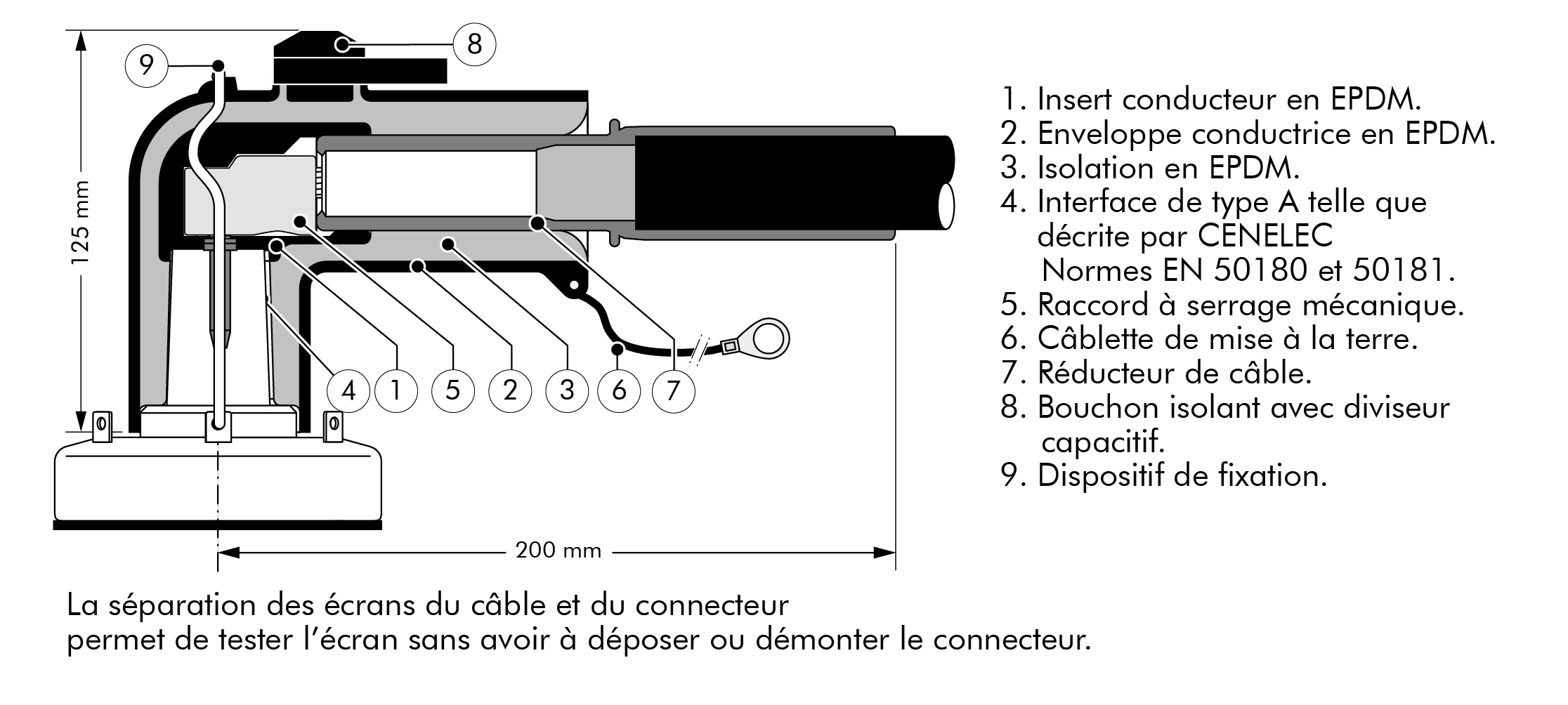

NOMENCLATURE CSE-250-A-RSM (K200LR)

INFORMATIONS

Chaque kit contient trois connecteurs, les notices de montage, les embouts à serrage mécanique, ainsi que les dispositifs de fixation.

Il est recommandé de stocker le produit dans un environnement à l'abri des intempéries, tempéré entre -10°C et +40°C.

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Connector shape
Elbow
Connector type
Female
Conductor material
Copper or Aluminum
Technology
Slip-0n

Dimensional characteristics

Dimensional characteristics

Conductor cross-section, range
50 ... 95 mm²
Diameter over insulation, range
19.7 ... 22.5 mm

Electrical characteristics

Electrical characteristics

Rated Voltage Uo/U (Um)
12 / 20 (24) kV
Dielectric withstand voltage, 50Hz 1mn
55 kV
Impulse voltage
125 kV
Maximal partial discharge at 2Uo
10 pC

Usage characteristics

Usage characteristics

Interface
A (250 A)
Ambient installation temperature, range
0 ... 40 °C
