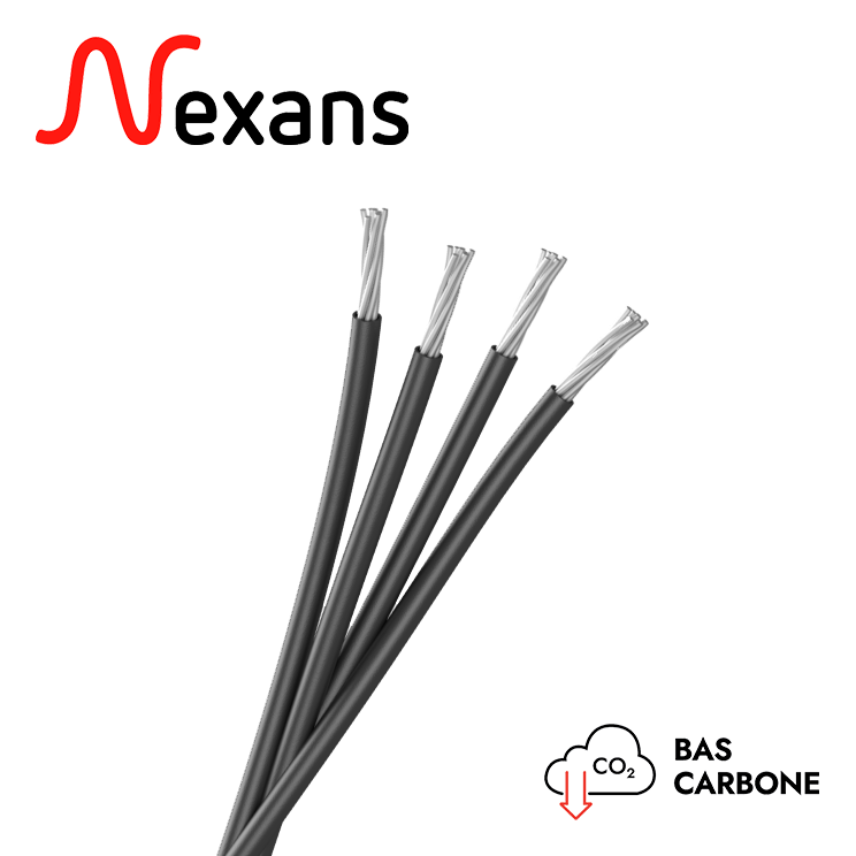

FR-N1XD4-AR 4x16 NF C33-209

Description

Description

Standards

  • International
    IEC 60298
  • National
    NF C11-201; NF C32-013; NF C33-209

Application

ALUMINIUM NF C33-209 service bundled conductors are used for tributary networks of power buildings and their internal networks.

Characteristics

The bundled conductor cables have aluminum conductors, insulated with XLPE, they have good durability and thermal resistance.

Some other important cable characteristics are :

  • Ultraviolet radiation resistance,
  • Ozone resistance,
  • High dielectric strength,
  • Light and easy to handle.

Installation

The NF C11-201 standard´s procedures determine the installation procedures for low voltage overhead lines.

These cables are NOT ALLOWED to be buried, even in conduits.

Marking

  • Neutral :

211 NF C33-209 211 « manufacturing number », « metric marks » ink printed.

  • Phase 1, 2, 3 :

the identification number is printed and embossed on insulation.

  • Pilot wire n°1 : continuous white line is printed on the insulation
  • Pilot wire n°2 : no marking

Electrical characteristics

  • Rated voltage : 0.6/1 kV
  • Test voltage : 4 kV AC
  • Resistance to voltage surges : 1.2/50µs with a positive or negative polarity and a peak value of 20 kV.

Low carbon offer

Low carbon at a glance

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Neutral messenger
None
Pilot wires
None
Conductor flexibility
Stranded class 2
Conductor material
Aluminum
Conductor shape
Circular
Insulation
XLPE (chemical)
Lead free
-
Sheath colour
-

Dimensional characteristics

Dimensional characteristics

Conductor cross-section
16 mm²
Number of cores
4
Approximate diameter of the bunched cable
17.6 mm
Approximate weight
262 kg/km
Messenger cross-section
- mm²
Minimum diameter, conductor of the phase core
4.6 mm
Minimum diameter, phase core
7.0 mm

Electrical characteristics

Electrical characteristics

Rated Voltage Uo/U (Um)
0,6/1 kV
Test voltage 1mn 50Hz
4 kV
Max. linear resistance, phase conductor
1.91 Ohm/km
Permissible current rating in open air
- A
Voltage drop, 3 conductors
3.44 V/A.km
Voltage drop, single phase
- V/A.km

Mechanical characteristics

Mechanical characteristics

Cable flexibility
-
Mechanical resistance to impacts
-
Yield test resistance
190 daN

Usage characteristics

Usage characteristics

Packaging
Cut to length
Length
- m
Bending factor when installed
- (xD)
Dynamic bending factor
- (xD)
Flame retardant
-
Max. conductor temperature in service
90 °C
Operating temperature, range
- °C
Short-circuit max. conductor temperature
- °C
Weather resistance
-
