NF C33-209 cables Messenger 54.6 mm²

Products

FR-N1XD9-AR 3x35 +54.6 +16 NF C33-209 NEW

Nexans ref. 10057509 - Country ref. 01384300

  • Packaging: Cut to length (m)
  • Public lighting: 1 x 16 mm²
  • Conductor cross-section: 35 mm²



FR-N1XD9-AR 3x35 +54.6 NF C33-209 NEW

Nexans ref. 10057508 - Country ref. 01384180

  • Packaging: Cut to length (m)
  • Public lighting: None
  • Conductor cross-section: 35 mm²



FR-N1XD9-AR 3x50 +54.6 NF C33-209 NEW

Nexans ref. 10057513 - Country ref. 01384190

  • Packaging: Cut to length (m)
  • Public lighting: None
  • Conductor cross-section: 50 mm²



FR-N1XD9-AR 3x70 +54.6 +16 NF C33-209 NEW

Nexans ref. 10057534 - Country ref. 01384320

  • Packaging: Cut to length (m)
  • Public lighting: 1 x 16 mm²
  • Conductor cross-section: 70 mm²



FR-N1XD9-AR 3x70 +54.6 +2x16 NF C33-209 NEW

Nexans ref. 10057538 - Country ref. 01384420

  • Packaging: Cut to length (m)
  • Public lighting: 2 x 16 mm²
  • Conductor cross-section: 70 mm²



FR-N1XD9-AR 3x70 +54.6 NF C33-209 NEW

Nexans ref. 10057529 - Country ref. 01384200

  • Packaging: Cut to length (m)
  • Public lighting: None
  • Conductor cross-section: 70 mm²



Description

Description

Standards

  • National
    NF C11-201; NF C33-209

Application

NF C33-209 Network distribution bundled conductors with neutral messenger are designed for rural and urban areas.

Some important cable characteristics are :

  • Ultraviolet radiation resistance,
  • Ozone resistance,
  • High dielectric strength,
  • Light and easy to handle.

Installation

The NF C11-201 standard´s procedures determine the installation procedures for low voltage overhead lines.

These cables are NOT ALLOWED to be buried, even in conduits.

Description

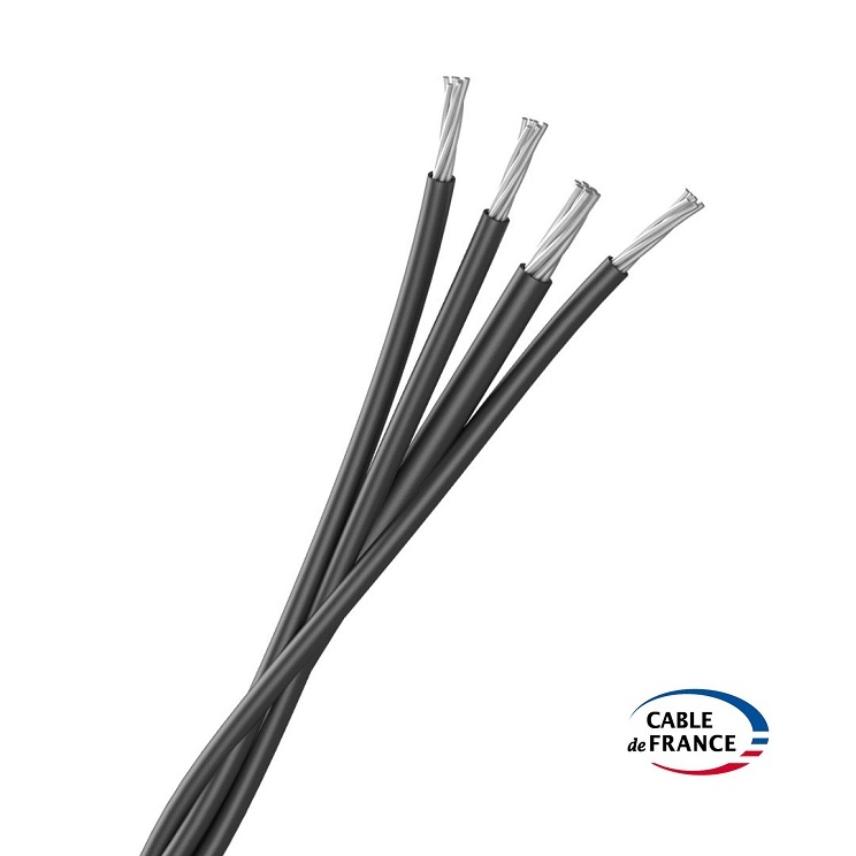

The bundled conductor cables have aluminum conductors, insulated with XLPE, they have good durability and thermal resistance.

Messenger caracteristics

  • core : circular stranded in AGS aluminum alloy, cross-section area 54.6 mm²
  • Insulation : Black XLPE
  • nominal cross section : 54.6 mm²
  • core diameter : 9.2 mm to 9.6 mm
  • insulated core diameter : min. 12.3 mm, max. 13.0 mm
  • min. breaking load : 1660 daN

Marking

  • Neutral :

211 NF C33-209 211 « manufacturing number », « metric marks » ink printed.

  • Phase 1, 2, 3 :

the identification number is printed and embossed on insulation.

  • Public lighting:

«EP1», «EP2 » is printed and embossed on each conductor, «EP3» if three conductors are required.

Electrical characteristics

  • Rated voltage : 0.6/1 kV
  • Test voltage : 4 kV AC
  • Resistance to voltage surges : 1.2/50µs with a positive or negative polarity and a peak value of 20 kV.

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Colour
Black
Conductor flexibility
Stranded class 2
Conductor material
AGS Aluminum alloy
Conductor shape
Circular
Insulation
XLPE (chemical)

Dimensional characteristics

Dimensional characteristics

Number of cores
3

Electrical characteristics

Electrical characteristics

Rated Voltage Uo/U (Um)
0,6/1 kV

Usage characteristics

Usage characteristics

Packaging
Cut to length
